WATER & OILBATHS



WATERBATHS (BASIC)
Brand / Model : Memmert / WNB
  • Microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator.
  • Solid state switching unit.
  • One Pt100 sensor class A in 4-wire-circuit.
  • Integrated digital timer from 1 min. to 99.59 hours.
  • Digital display (LED) of set and actual temperature (0,1°C resolution) and of (remaining) programme time.
  • LEDs for indication of programme status.
  • Double overtemperature protection.
  • Temperature Range : Min. 5°C above ambient up to +95°C with additional boiling mode (+100°C).
  • Casing Material : Stainless steel 1.4301 (ASTM 304), corrosion resistant.
  • Inner Material : Easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded.
  • Brand : Memmert, Germany

Model
Capacity
Interior
(W x H x D)
Net Weight
(Approx.)
Brochure
MEMMERT WNB 7
7 liter
240 x 210 x 140 mm
11 kg
MEMMERT WNB 10
10 liter
350 x 210 x 140 mm
13 kg
MEMMERT WNB 14
14 liter
350 x 290 x 140 mm
15 kg
MEMMERT WNB 22
22 liter
350 x 290 x 220 mm
16 kg
MEMMERT WNB 29
29 liter
590 x 350 x 140 mm
22 kg
MEMMERT WNB 45
45 liter
590 x 350 x 220 mm
24 kg

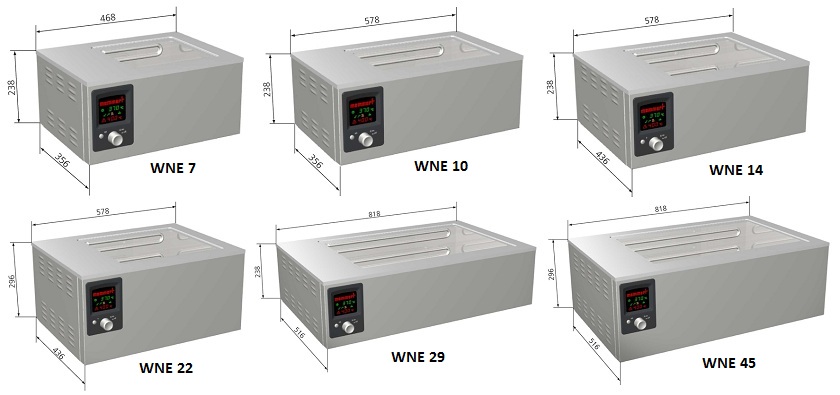

WATERBATHS (EXCELLENT)
Brand / Model : Memmert / WNE
  • Fuzzy-supported PID microprocessor controller with integrated autodiagnostic system with fault indication.
  • Solid state switching unit.
  • 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value.
  • Digital timer from 1 min. up to 999 hours.
  • Digital display (LED) of all set parameters, such as temperature and alarm values (0,1°C resolution) as well as time values.
  • Calibration facility on controller.
  • Triple overtemperature protection.
  • Audible and visual alarm at programme end and as input acknowledgement as well as in case of low liquid level, heating is switched off automatically.
  • Temperature Range : Min. 5°C above ambient up to +95°C with additional boiling mode (+100°C).
  • Casing Material : Stainless steel 1.4301 (ASTM 304), corrosion resistant.
  • Inner Material : Easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded.
  • Brand : Memmert, Germany

Model
Capacity
Interior
(W x H x D)
Net Weight
(Approx.)
Brochure
MEMMERT WNE 7
7 liter
240 x 210 x 140 mm
11 kg
MEMMERT WNE 10
10 liter
350 x 210 x 140 mm
13 kg
MEMMERT WNE 14
14 liter
350 x 290 x 140 mm
15 kg
MEMMERT WNE 22
22 liter
350 x 290 x 220 mm
16 kg
MEMMERT WNE 29
29 liter
590 x 350 x 140 mm
22 kg
MEMMERT WNE 45
45 liter
590 x 350 x 220 mm
24 kg

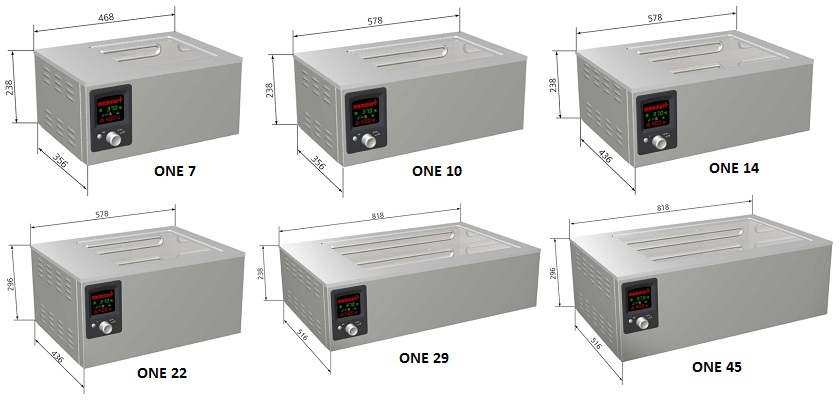

OILBATHS (EXCELLENT)
Brand / Model : Memmert / ONE
  • Fuzzy-supported PID microprocessor controller with integrated autodiagnostic system with fault indication.
  • Solid state switching unit.
  • 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value.
  • Digital timer from 1 min. up to 999 hours.
  • Digital display (LED) of all set parameters, such as temperature and alarm values (0,1°C resolution) as well as time values.
  • Calibration facility on controller.
  • Triple overtemperature protection.
  • Audible and visual alarm at programme end and as input acknowledgement as well as in case of low liquid level, heating is switched off automatically.
  • Temperature Range : Min. 5°C above ambient up to +200°C.
  • Casing Material : Stainless steel 1.4301 (ASTM 304), corrosion resistant.
  • Inner Material : Easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded.
  • Brand : Memmert, Germany

Model
Capacity
Interior
(W x H x D)
Net Weight
(Approx.)
Brochure
MEMMERT ONE 7
7 liter
240 x 210 x 140 mm
11 kg
MEMMERT ONE 10
10 liter
350 x 210 x 140 mm
13 kg
MEMMERT ONE 14
14 liter
350 x 290 x 140 mm
15 kg
MEMMERT ONE 22
22 liter
350 x 290 x 220 mm
16 kg
MEMMERT ONE 29
29 liter
590 x 350 x 140 mm
22 kg
MEMMERT ONE 45
45 liter
590 x 350 x 220 mm
24 kg

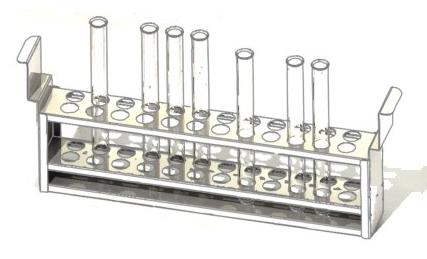

TEST TUBE RACK
Brand : Memmert

  • Test tube rack for Memmert WNB/WNE/ONE 10, 14, 22, 29 and 45.
  • Material : Stainless steel
  • Brand : Memmert, Germany
Model
Descriptions
Width
MEMMERT E02014 (N22)
24 holes, 2 rows x 14.5 mm dia.
43 mm
MEMMERT E02022 (N23)
24 holes, 2 rows x 18.0 mm dia.
50 mm
MEMMERT E02032 (N24)
20 holes, 2 rows x 21.0 mm dia.
55 mm
MEMMERT E02034 (N25)
12 holes, 2 rows x 32.0 mm dia.
80 mm

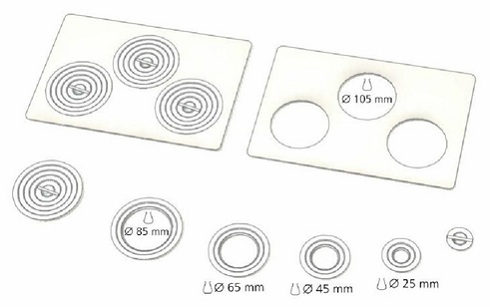

FLAT RING COVER
Brand / Product Code : Memmert / B02681

  • Flat stainless steel cover with concentric ring sets for ring set openings : 3 openings / 107 mm diameter.
  • For Memmert WNB/WNE/ONE 10 only.
  • Material : Stainless steel
  • Brand : Memmert, Germany







FLAT RING COVER
Brand / Product Code : Memmert / B02682

  • Flat stainless steel cover with concentric ring sets for ring set openings : 6 openings / 87 mm diameter.
  • For Memmert WNB/WNE/ONE 14 & 22 only.
  • Material : Stainless steel
  • Brand : Memmert, Germany

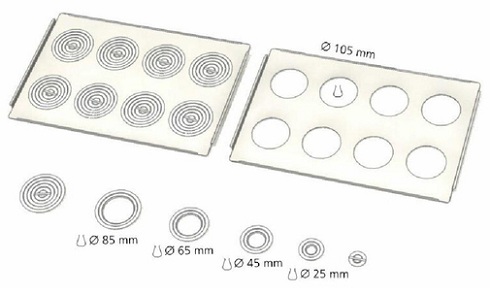

FLAT RING COVER
Brand / Product Code : Memmert / B02684

  • Flat stainless steel cover with concentric ring sets for ring set openings : 8 openings / 107 mm diameter.
  • For Memmert WNB/WNE/ONE 29 & 45 only.
  • Material : Stainless steel
  • Brand : Memmert, Germany

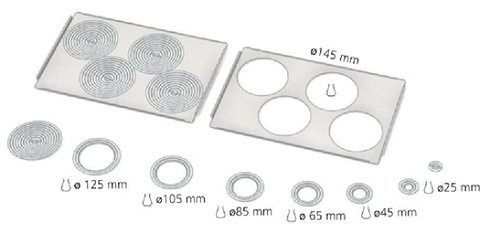

FLAT RING COVER
Brand / Product Code : Memmert / B02685

  • Flat stainless steel cover with concentric ring sets for ring set openings : 4 openings / 147 mm diameter.
  • For Memmert WNB/WNE/ONE 29 & 45 only.
  • Material : Stainless steel
  • Brand : Memmert, Germany

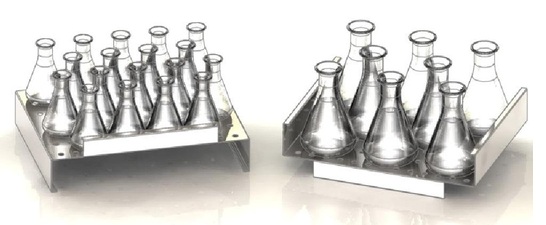

SHELF REVERSIBLE FOR 2 HEIGHT
Brand : Memmert

  • Material : Stainless steel
  • Brand : Memmert, Germany
Model
Description
Height
MEMMERT E02894
Reversible platform for Memmert WNB/WNE/ONE 10
30 or 60 mm
MEMMERT E02895
Reversible platform for Memmert WNB/WNE/ONE 14 & 22
30 or 60 mm
MEMMERT E02896
Reversible platform for Memmert WNB/WNE/ONE 29 & 45
30 or 60 mm

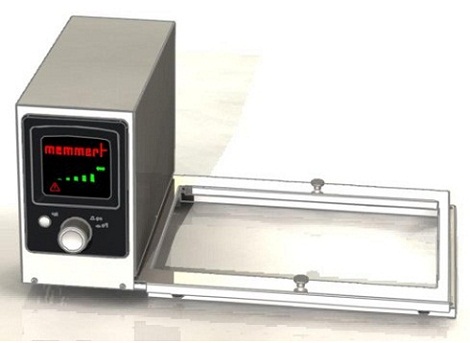

SHAKING DEVICE
Brand : Memmert

  • Convert your MEMMERT waterbath to shaking waterbath using shaking device.
  • Shaking device included support frame, shaking frequency 35 – 160 strokes per minute (horizontal back/forth movement), requires special gable cover.
  • Material : Stainless steel
  • Brand : Memmert, Germany


Model
Descriptions
MEMMERT SV1422
Shaking device for Memmert WNB/WNE/ONE 14 and 22
MEMMERT SV2945
Shaking device for Memmert WNB/WNE/ONE 29 and 45

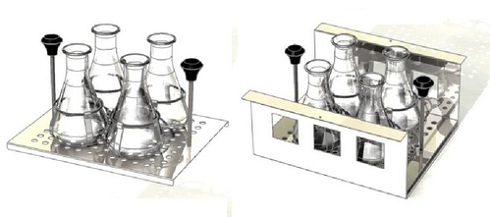

SUPPORT BASKET WITH PERFORATED MOUNTING SHELF
Brand : Memmert

  • Support basket with perforated mounting shelf (stainless steel) with grid perforations to take clips for conical flasks.
  • Use with shaking device.
  • Material : Stainless steel
  • Brand : Memmert, Germany
Model
Descriptions
MEMMERT B02782 (M10-A)
Support basket with perforated mounting shelf for WNB/WNE/ONE 14 and 22
MEMMERT B04397 (M10-B)
Support basket with perforated mounting shelf for WNB/WNE/ONE 29 and 45







FLASK CLIPS
Brand : Memmert

  • Using with support basket with perforated mounting shelf.
  • Material : Stainless steel
  • Brand : Memmert, Germany
Model
Descriptions
Max. Flask Clip for
WNB/WNE/ONE 14 & 22
Max. Flask Clip for
WNB/WNE/ONE 29 &45
MEMMERT B02692 (M11)
Clip for 100 ml flask
12 units
18 units
MEMMERT B02693 (M12)
Clip for 200 ml flask
6 units
14 units
MEMMERT B02694 (M13)
Clip for 300 ml flask
6 units
14 units
MEMMERT B02695 (M14)
Clip for 500 ml flask
5 units
8 unit
