VACUUM PUMP

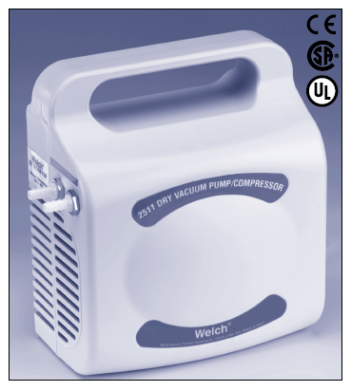

VACUUM PUMP (OILLESS)
Brand / Model : Welch / 2511C-02

  • Oil-free vacuum pump.
  • Lightweight, compact and portable.
  • For applications requiring only a rough vacuum and moderate pressure
  • For general duty laboratory applications (vacuum filtration, aspiration, aeration & gas sampling)
  • Not recommended for organic, basic and acidic vapors.
  • Each unit comes with a 6-ft cord and switch.
  • Free Air Displacement : 9.2 L/min
  • Vacuum : 292 mbar
  • Pressure : 2.3 bar
  • Weight : 2.3 kg
  • Dimensions (L x W x H) : 194 x 114 x 191 mm
  • Electrical Supply : 230V, 50Hz, 1Ph, CE
  • Brand : Welch, USA

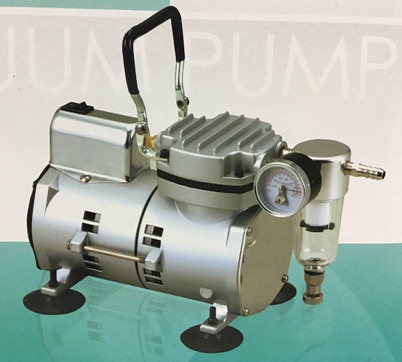

VACUUM PUMP (OILLESS)
Brand / Model : Sparmax / TC-501v

  • Basic vacuum pump for a variety of laboratory uses
  • Oil-less piston type vacuum pump and zero maintenance
  • Low noise level (under 60 dB)
  • Large rubber feet dampens vibrations and add stability
  • Easy replacement of moisture trap and filter
  • Fan cooled, thermally protected
  • Serrated connector accepts 1/8" ID vacuum tubing
  • Equipped with vacuum gauge / filter / vacuum adjustable
  • Vacuum : 675 mm Hg
  • Output Airflow : 26 LPM
  • Motor Power : 1/6 HP Single Cylinder
  • Power Consumption : 100 Watt
  • Port Thread : 1/8" NPT (6 mm diameter)
  • Weight : 3.6 kg
  • Dimensions (L x W x H) : 28 x 14 x 17 cm
  • Electrical Supply : 220V-240V, 50Hz, 1Ph
  • Brand : Sparmax, Taiwan

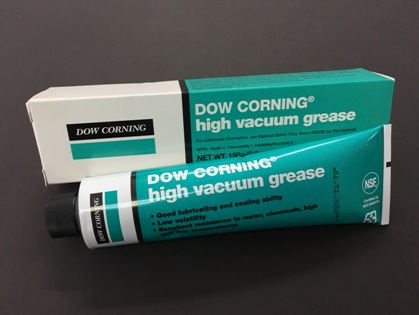

HIGH VACUUM GREASE
Brand / Model : Dow Corning / LT150-15

  • Dow Corning Gigh Vacuum Grease effectively seals and lubricates glass stopcocks, joints and glass-rubber connections.
  • Good lubricating and sealing ability
  • Low volatility
  • Excellent resistance to water, chemicals, high and low temperature
  • Direction : Throughly clean surfaces. Then apply a minimum amount of Dow Corning High Vacuum Grease evenly and wipe off excess.
  • Contains : Polydimethylsiloxane, Silicone dioxide, Silicone Metalloid Complex
  • VOC Content : 15 g/L
  • Net Weight : 150 g (5.3 oz)
  • Brand : Dow Corning, USA
