ULTRASONIC CLEANER BATHS

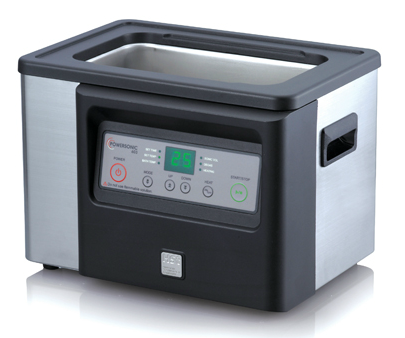

ULTRASONIC CLEANER BATH
Brand / Model : Hwashin / Powersonic 603

  • Built-in microprocessor controller.
  • High-performance industrial BLT Type transducer.
  • Selectable use of ultrasonic power (3 steps - Low, Medium, High). Built-in digital thermometer and timer to set optimum condition for cleaning.
  • Degassing function to eliminate dissolved gas in water or solutions.
  • User friendly control panel for easy and simple operation.
  • Elegant style and strong durability.
  • Silicone rubber heater for durability and stability.
  • Lid to see the inside of the bath.
  • Built-in alarm function for operation stop.
  • Stainless steel perforated tray included.
  • Temperature Range : Ambient to +60°C (Digital)
  • Time Range : 1 to 99 min (Digital)
  • Frequency : 40 KHz
  • Bath Capacity : 3.3 Liter
  • Bath Dimensions : 240 x 140 x 100 mm
  • Overall Dimensions : 325 x 225 x 255 mm
  • Tray Dimensions : 240 x 135 x 105 mm
  • Housing Material : SUS 304 + ABS
  • Required Power : 200 Watt
  • Brand : Hwashin, Korea







ULTRASONIC CLEANER BATHS
Brand : Hwashin

  • Built-in microprocessor controller.
  • High-performance industrial BLT Type transducer.
  • Selectable use of ultrasonic power (3 steps - Low, Medium, High). Built-in digital thermometer and timer to set optimum condition for cleaning.
  • Easy to read operation status on digital display..
  • Built-in drain valve unit.
  • Silicone rubber heater for durability and stability.
  • Built-in alarm function for operation stop.
  • Stainless steel perforated tray included.
  • Temperature Range : Ambient to +70°C (Digital)
  • Time Range : 1 to 99 min (Digital)
  • Frequency : 40 KHz
  • Housing Material : ABS
  • Brand : Hwashin, Korea
Model
Bath
Capacity
Bath
Dimensions
Overall
Dimensions
Tray
Dimensions
Power

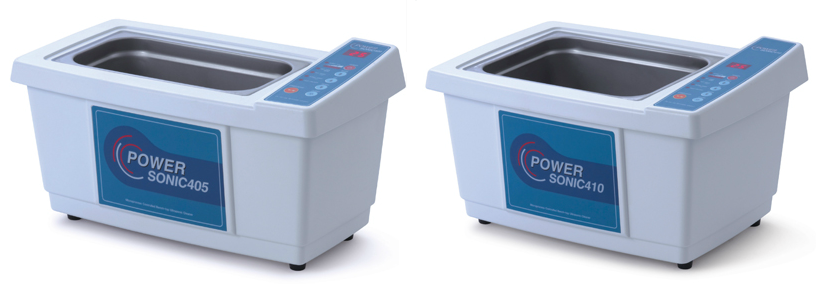

HWASHIN Powersonic 405
5.7 liter
300 x 155 x 150 mm
500 x 285 x 260 mm
240 x 140 x 150 mm
350 Watt
HWASHIN Powersonic 410
10.7 liter
300 x 240 x 150 mm
510 x 375 x 280 mm
255 x 200 x 100 mm
400 Watt

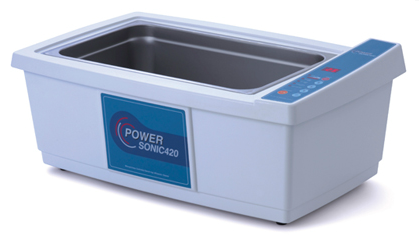

HWASHIN Powersonic 420
20.7 liter
500 x 300 x 150 mm
720 x 450 x 280 mm
500 x 300 x 150 mm
700 Watt







ULTRASONIC CLEANER BATHS

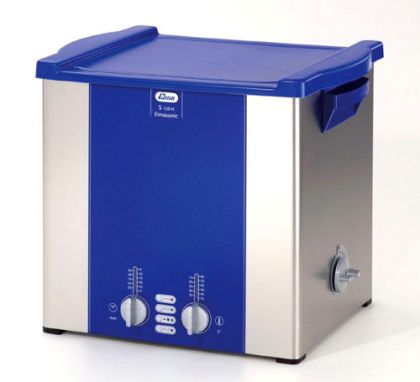

Brand / Model : Elma / Elmasonic S
  • Ultrasonic Cleaner with electronic timer, heating, plastic cover & stainless steel basket.
  • Electronic time and heating control.
  • Autostart temperature-controlled / temperature pre-selection.
  • High-performance transducer systems.
  • Dry run proof ceramic heating.
  • Quick degassing with Autodegas / Degas.
  • Improved cleaning performance with Sweep.
  • Safety switch-off.
  • Temperature Range : 30°C to +80°C in steps of 5°C
  • Frequency : 37 KHz
  • Brand : Elma, Germany

Model
Bath
Capacity
Tank Internal
Size (W x D x H)
Unit External
Size (W x D x H)
Basket External
Size (W x D x H)
Power
ELMA S 30 H
2.75 liter
240 x 137 x 100 mm
300 x 179 x 214 mm
198 x 106 x 50 mm
200 Watt
ELMA S 60 H
5.75 liter
300 x 151 x 150 mm
365 x 186 x 264 mm
255 x 115 x 75 mm
400 Watt
ELMA S 80 H
9.40 liter
505 x 137 x 150 mm
568 x 179 x 264 mm
455 x 106 x 75 mm
600 Watt
ELMA S 120 H
12.75 liter
300 x 240 x 200 mm
365 x 278 x 321 mm
365 x 278 x 321 mm
800 Watt
ELMA S 180 H
18.00 liter
327 x 300 x 200 mm
390 x 340 x 321 mm
280 x 250 x 115 mm
800 Watt
ELMA S 300 H
28.00 liter
505 x 300 x 200 mm
568 x 340 x 321 mm
455 x 250 x 115 mm
1200 Watt
