TUBES & VIALS



TEST TUBE (GLASS)
Brand : Pyrex-Iwaki

  • Rimmed
  • Borosilicate glass
  • Packing : 50 pcs/box
  • Brand : Pyrex-Iwaki
Model
O.D. x Length
Wall Thickness
Approx. Volume
PYREX TEST10-75NP
10 x 75 mm
1.0 mm
3 mL
PYREX TEST12-75NP
12 x 75 mm
1.1 mm
4 mL
PYREX TEST13-100NP
13 x 100 mm
1.2 mm
7 mL
PYREX TEST16-100NP
16 x 100 mm
1.2 mm
12 mL
PYREX TEST16-125NP
16 x 125 mm
1.2 mm
14 mL
PYREX TEST16-150NP
16 x 150 mm
1.2 mm
17 mL
PYREX TEST18-150NP
18 x 150 mm
1.2 mm
23 mL
PYREX TEST20-150NP
20 x 150 mm
1.2 mm
29 mL
PYREX TEST25-150NP
25 x 150 mm
1.2 mm
47 mL
PYREX TEST25NP
25 x 200 mm
1.2 mm
63 mL

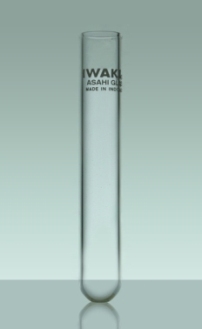

TEST TUBE (GLASS)
Brand : Pyrex-Iwaki

  • Rimless
  • Borosilicate glass
  • Packing : 50 pcs/box
  • Brand : Pyrex-Iwaki
Model
O.D. x Length
Wall Thickness
Approx. Volume
PYREX 9820TST10-75NP
10 x 75 mm
1.0 mm
3 mL
PYREX 9820TST12-75NP
12 x 75 mm
1.1 mm
4 mL
PYREX 9820TST13-100NP
13 x 100 mm
1.2 mm
7 mL
PYREX 9820TST16-100NP
16 x 100 mm
1.2 mm
12 mL
PYREX 9820TST16-125NP
16 x 125 mm
1.2 mm
14 mL
PYREX 9820TST16-150NP
16 x 150 mm
1.2 mm
17 mL
PYREX 9820TST18-150NP
18 x 150 mm
1.2 mm
23 mL
PYREX 9820TST20-150NP
20 x 150 mm
1.2 mm
29 mL
PYREX 9820TST25-150NP
25 x 150 mm
1.2 mm
47 mL
PYREX 9820TST25NP
25 x 200 mm
1.2 mm
63 mL







TEST TUBES (GLASS)
Brand : Kimble
  • Sturdy lip and uniform wall thickness for maximum heat transfer and chemical resistance
  • Rimmed
  • Without a marking spot
  • Manufactured from 51 expansion borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class B requirements
  • Brand : Kimble, USA
Model
Overflow Capacity
Dimension (O.D. x H)
Packing
KIMBLE 45050-25150
55 mL
25 x 150 mm
144 pcs/pack
KIMBLE 45050-25200
75 mL
25 x 200 mm
192 pcs/pack







CULTURE TUBES (GLASS)
Brand : Kimble

  • DISPOSABLE GLASS TUBES. No marking spot
  • These premium quality tubes feature sturdy, uniform bottoms and consistent lengths. The 10 x 75 and 12 x 75 mm sizes are suitable for cell washing procedures.
  • 51 expansion borosilicate glass offers excellent chemical resistance against sodium leaching, a factor common in soda lime glass products
  • Tubes are packed in convenient trays for ease of use on bench tops and in drawers

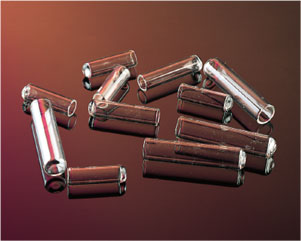

  • The 6 x 50 mm size is often referred to as a “Durham tube”
  • Trays are shrink-wrapped in plastic film, with tubes remaining in constant alignment for protection against in-transit breakage and contamination
  • Designed from ASTM Specification E890. Manufactured from 51 expansion borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class B requirements
  • Brand : Kimble, USA
Model
Overflow Capacity
O.D. x Length
Packing
KIMBLE 73500-650
1 mL
6 x 50 mm
1000 units/case (10 x 100 units)
KIMBLE 73500-1075
4 mL
10 x 75 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-1275
6 mL
12 x 75 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-13100
10 mL
13 x 100 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-16100
15 mL
16 x 100 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-16125
19 mL
16 x 125 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-16150
23 mL
16 x 150 mm
1000 units/case (4 x 250 units)
KIMBLE 73500-18150
28.5 mL
18 x 150 mm
500 units/case (4 x 125 units)
KIMBLE 73500-20150
36 mL
20 x 150 mm
500 units/case (2 x 250 units)
KIMBLE 73500-25150
55 mL
25 x 150 mm
500 units/case (4 x 125 units)







SCREW TEST TUBES (GLASS)
Brand : Kimble

  • These culture tubes are suitable for tissue culture work and general bacteriological use.
  • Round-bottomed
  • Modular trays are shrink-wrapped in plastic film.
  • Supplied with black phenolic caps with cemented-in rubber liners, autoclavable.
  • Manufactured from 51 expansion borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class B requirements.
  • Brand : Kimble, USA
Model
O.D. x Length
Overflow Capacity
GPI Finish
Packing
KIMBLE 73750-13100
13 x 100 mm
8 mL
13-415
100 units/pack
KIMBLE 73750-16100
16 x 100 mm
12 mL
15-415
100 units/pack
KIMBLE 73750-16125
16 x 125 mm
16 mL
15-415
100 units/pack
KIMBLE 73750-16150
16 x 150 mm
20 mL
15-415
100 units/pack
KIMBLE 73750-20125
20 x 125 mm
25 mL
18-415
100 units/pack
KIMBLE 73750-20150
20 x 150 mm
30 mL
18-415
100 units/pack







SCREW TEST TUBES (GLASS)
Brand : Kimble

  • REUSABLE SCREW THREAD CULTURE TUBES
  • KIMAX® culture tube made from tubing with uniform wall thickness for maximum heat transfer and chemical resistance.
  • Provided with phenolic screw-thread caps, unattached
  • Series 45066A is designed from ASTM E982, Type VI, Class B requirements
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
  • Liner Material : PTFE-Faced Rubber
  • Brand : Kimble, USA
Model
Capacity to Neck
O.D. x Length
Packing
KIMBLE 45066A-13100
8 mL
13 x 100 mm
144 pcs/pack
KIMBLE 45066A-16100
12 mL
16 x 100 mm
144 pcs/pack
KIMBLE 45066A-16125
16 mL
16 x 125 mm
144 pcs/pack
KIMBLE 45066A-16150
20 mL
16 x 150 mm
144 pcs/pack
KIMBLE 45066A-20150
30 mL
20 x 150 mm
96 pcs/pack
KIMBLE 45066A-25150
50 mL
25 x 150 mm
72 pcs/pack
KIMBLE 45066A-25200
70 mL
25 x 200 mm
72 pcs/pack

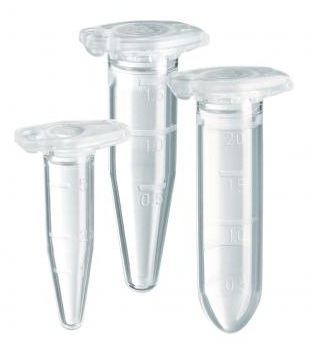

SAFE-LOCK MICROCENTRIFUGE TUBES
Brand : Eppendorf

  • The original Safe-Lock tubes protect your sample with excellent centrifugation stability, feature perfect sealing properties, and reliably prevent sample evaporation.
  • g-Safe® : Exceptional centrifugation stability up to 30,000 × g prevents sample loss due to tube breakage and provides extra safety when working with hazardous samples
  • Hinged Eppendorf Safe-Lock lid prevents unintentional lid opening during incubation and storage.
  • Polypropylene provides high resistance to chemicals, mechanical stress and temperature extremes.
  • Manufactured without the use of slip agents, plasticizers, and biocides – substances that have been shown to leach from plastic consumables into the sample and negatively affect bio-assay results.
  • Precise lid sealing for minimal evaporation rates during long-term storage.
  • Large frosted lid and surface on the side for easy labeling.
  • Guaranteed functionality from -86°C to 100°C.
  • Autoclavable when open (121 °C, 20 min).
  • Brand : Kimble, USA

Model
Capacity
Colour

Purity Grades

Packing
EPPENDORF 0030121023
0.5 mL (Safe-Lock)
Colourless
Eppendorf Quality
500 units/box
EPPENDORF 0030120086
1.5 mL (Safe-Lock)
Colourless
Eppendorf Quality
1000 units/box
EPPENDORF 0030120094
2.0 mL (Safe-Lock)
Colourless
Eppendorf Quality
1000 units/box
EPPENDORF 0030125215
1.5 mL (3810X)
Colourless
PCR Clean
1000 units/box
EPPENDORF 0030123328
1.5 mL (Safe-Lock)
Colourless
PCR Clean
1000 units/box
EPPENDORF 0030123344
2.0 mL (Safe-Lock)
Colourless
PCR Clean
1000 units/box

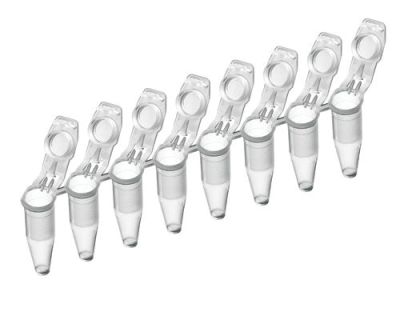

PCR TUBES
Brand : Eppendorf

  • Product features 0.2 ml PCR Tube, thin-walled

    • Contamination shield on hinged lid
    • Defined lid position due to special hinge
    • High transparency even on the tube base
    • Etched lid for additional writing surface
    • Tight sealing
    • Easy to open
    • For use with all thermal cyclers with 0.2 ml block format
    • Also availabe in 8-tube strip format
    • Certified free from human DNA, DNase, RNase and PCR inhibitor
  • Product features 0.5 ml PCR Tube, thin-walled :

    • Frosted area for easy labeling
    • High transparency
    • Certified free from human DNA, DNase, RNase and PCR inhibitor
    • Tight sealing
    • Easy to open
    • For use with all thermal cyclers with 0.5 ml block format
  • Brand : Eppendorf, Germany
Model
Capacity
Colour
Packing
EPPENDORF 0030124332
0.2 mL
Colourless
1000 units/box
EPPENDORF 0030124359
0.2 mL (Eight-tube strip)
Colourless
120 strips/box (960 units/box)
EPPENDORF 0030124502
0.5 mL
Colourless
500 units/box

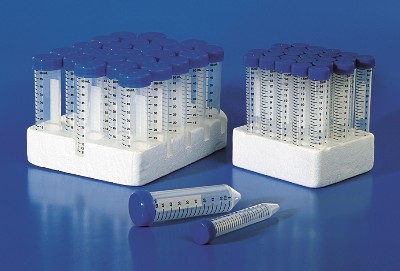

CENTRIFUGE TUBE (PLASTIC - STERILE)
Brand : Kartell
  • 15 and 50 ml graduated conical tubes in high-transparency PP with large whitemarking area.
  • Withstands temperature extremes of -80°C to +121°C.
  • Includes blue thread-design plug-seal cap with ribbed edge for safe and easy opening and closing.
  • Conical bottom for total sample recovery.
  • Easy-to-read graduations are pre- printed as follows: 15 ml tubes are graduated in 0.5 ml subdivisions from 2 to 15 ml 50 ml tubes are graduated in 2.5 ml subdivisions from 5 to 50 ml.
  • Sterile tubes are irradiated by ionizing beta radiation.
  • Designed for sample collection or transportation.
  • Apyrogenic, endotoxines/free, autoclavable and carry the CE conformity mark pursuant to Directive 98/79/CE
  • Material : Polypropylene (PP)
  • Brand : Kartell, Italy
Model
Capacity
RCF
Dimension (Dia. x H)
Packing
KARTELL 84007
15 mL
6200 x g
17 x 121 mm
50 pcs/pack x 15
KARTELL 84012
50 mL
9400 x g
30 x 117 mm
25 pcs/pack x 20







CENTRIFUGE TUBE (GLASS)
Brand / Product Code : Kimble / 45194-12

  • Heavy duty plain centrifuge tubes
  • Standard Taper KIMAX® tube made with heavy-walled tubing to withstand higher centrifugation speeds
  • Top is beaded for strength
  • Outside dimensions are the same as 45160; however, tubes will hold less due to heavier wall thickness.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Capacity : 12 mL
  • O.D. x Length : 17 x 118 mm
  • Max RCF : 2980
  • Packing : 12 unit/pack
  • Brand : Kimble, USA







CENTRIFUGE TUBE (GLASS)
Brand / Product Code : Kimble / 45160-15

  • Plain reusable centrifuge tube without closures
  • KIMAX® reusable centrifuge tube has a beaded top for added strength
  • Supplied without closures
  • Designed from Federal Specification A-A-51244, Type II ungraduated requirements.
  • 45150 series is designed from ASTM Specification E237
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
  • Capacity : 15 mL
  • O.D. x Length : 17 x 118 mm
  • Max RCF : 2980
  • Packing : 12 unit/pack
  • Brand : Kimble, USA







CENTRIFUGE TUBE (GLASS - RIMMED)
Brand / Model : Assistent / 942/2

  • Rimmed
  • Conical bottom
  • Graduated
  • Soda glass
  • Capacity : 15 mL
  • Graduation Interval : 0.1 mL
  • O.D. x Height : 17 x 112 mm
  • Packing : 12 pcs/pack
  • Brand : Assistent, Germany







CENTRIFUGE TUBE (GLASS - RIMLESS)
Brand / Model : Assistent / 939/2

  • Rimless
  • Conical bottom
  • Graduated
  • Soda glass
  • Capacity : 15 mL
  • Graduation Interval : 0.1 mL
  • O.D. x Height : 17 x 112 mm
  • Packing : 12 pcs/pack
  • Brand : Assistent, Germany

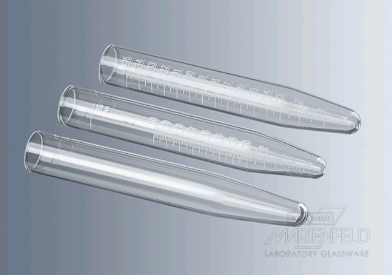

CENTRIFUGE TUBE (GLASS - RIMLESS)
Brand / Model : Superior / 3900022

  • Rimless
  • Long conical bottom
  • White graduated 1 to 15 mL
  • Soda lime glass
  • Capacity : 15 mL
  • Graduation Interval : 0.1 mL
  • O.D. x Height : Approx. 16/17 mm x 112/113 mm
  • Packing : 12 pcs/pack
  • Brand : Superior, Germany

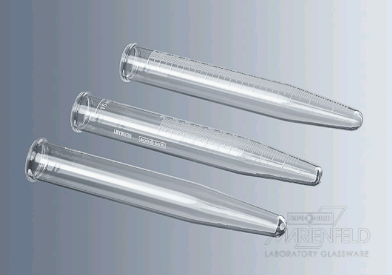

CENTRIFUGE TUBE (GLASS - RIMMED)
Brand / Model : Superior / 3910022

  • Rimmed
  • Conical bottom
  • White graduated 1 to 15 mL
  • Soda lime glass
  • Capacity : 15 mL
  • Graduation Interval : 0.1 mL
  • O.D. x Height : Approx. 16/17 mm x 112/113 mm
  • Packing : 12 pcs/pack
  • Brand : Superior, Germany

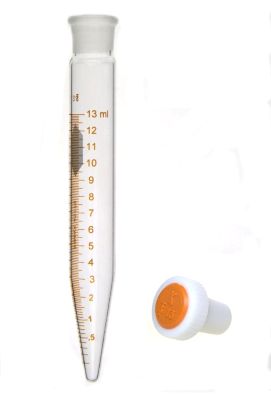

CENTRIFUGE TUBE (GLASS - PTFE STOPPER)
Brand / Product Code : Kimble / 45176-13

  • CENTRIFUGE TUBES WITH PTFE STANDARD TAPE STOPPER
  • Heavy-duty KIMAX® tube with a graduated scale and a PTFE Standard Taper stopper.
  • Calibrated to contain.
  • With top finish to accept a Standard Taper stopper.
  • Scale and legend are printed in permanent red stain on the 13 mL size.
  • Marking spot is sandblasted on.
  • Replacement stopper is 41941R.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Do not centrifuge with stopper in tube.
  • Capacity : 13 mL
  • Subdivision : 0.1 mL
  • O.D. x Length without stopper : 17 mm x 130 mm
  • Max RCF : 2050
  • Packing : 6 unit/pack
  • Brand : Kimble, USA







CENTRIFUGE TUBE (GLASS STOPPER)
Brand / Product Code : Kimble / 45153-15

  • CENTRIFUGE TUBES WITH PENNYHEAD STOPPERS
  • KIMAX® tube with a top finished to accept a Standard Taper stopper (supplied).
  • Graduated and calibrated to contain.
  • Scale, legend and marking spot are durable white ceramic enamel.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
  • Do not centrifuge with stopper in tube
  • Capacity : 15 mL
  • Subdivision : 0.1 mL
  • O.D. x Length without stopper : 17 x 136 mm
  • Max RCF : 2980
  • Packing : 12 unit/pack
  • Brand : Kimble, USA







CENTRIFUGE TUBE (GLASS - SCREW CAP)
Brand : Kimble

  • HEAVY DUTY ROUND BOTTOM CENTRIFUGE TUBE
  • KIMAX® tube useful in separating neutralized sediment for culturing from specimens of sputum.  Will be found useful also for other clinical work and in many microbiological applications.
  • KIMAX® tube with a heavy wall to withstand higher speeds in centrifuging.
  • Marking spot is sandblasted.
  • Autoclavable black phenolic caps with cemented-in rubber liners are supplied, attached.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Brand : Kimble, USA
Model
Capacity
O.D. x Height
Max RCF
Packing
KIMBLE 45212-35
35 mL
29 x 100 mm
3550
12 unit/pack
KIMBLE 45212-50
50 mL
29 x 123 mm
3550
12 unit/pack







CENTRIFUGE TUBE (GLASS - SCREW CAP)
Brand / Product Code : Kimble / 45246-100

  • GRADUATED CENTRIFUGE TUBES WITH SCREW THREAD CAP
  • Standard Taper KIMAX® tube with a screw thread finish
  • Graduated and calibrated to contain
  • Screw-thread cap supplied has PTFE-faced rubber liner and is packaged separately
  • Scale, legend and marking spot are durable white ceramic enamel
  • 45246 is a large-capacity, 100 mL tube
  • Manufactured to the specifications found in ASTM D2158
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
  • Capacity : 100 ml
  • Graduation Intervals : 0.05 ml (0-1 ml), 0.1 ml (1-3 ml), 0.2 ml (3-6 ml), 0.5 ml (6-10 ml), 1 ml (10-100 ml)
  • Size (O.D. x L) : 37 x 203 mm
  • Max RCF : 2980
  • Packing : 12 unit/pack
  • Brand : Kimble, USA







DURHAM TUBES
Brand : Samco

  • Soda glass
  • Clear glass
  • Rimless
  • Round bottom
  • Brand : Samco, UK
Model
O.D. x Length
Wall Thickness
Packing
SAMCO G010/21
6.5 x 25 mm
0.65 mm
250 units/box
SAMCO G010/22
6.5 x 30 mm
0.65 mm
250 units/box
SAMCO G010/24
7.5 x 50 mm
0.65 mm
250 units/box







NESSLER COLOUR COMPARISONS TUBES
Brand : Kimble

  • These Nessler tubes are ideal for color comparison.
  • Shadowless bottom of each tube transmits undistorted light.
  • Rings and legend are durable white ceramic enamel which correspond with specific volumes of liquid.
  • 45315A series is supplied in a matched set of 6.
  • Graduated ring scale of any of the tubes within a set will not vary from that of any other tube within the set by more than 1.5 mm for the 50 mL and 2.0 mm for the 100 mL sizes.
  • The 50 mL size is specifically mentioned by the American Public Health Association in Standard Methods for the Examination of Water and Waste Water.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I Class A requirements.
  • Brand : Kimble, USA
Model
Graduation
O.D. x Length
Scale Length
Packing
KIMBLE 45315A-50
50 mL
20 x 300 mm
200 - 220 mm
6 units/box
KIMBLE 45315A-100
100 mL
24 x 375 mm
275 - 295 mm
6 units/box
KIMBLE 45315A-50100
50 & 100 mL
24 x 375 mm
275 - 295 mm
6 units/box







NESSLER COLOUR COMPARISONS TUBE (WITH CAP)
Brand / Product Code : Kimble / 45325A-50

  • These Nessler tubes are ideal for color comparison and feature cap style stoppers that do not need to be removed to take readings.
  • Shadowless bottom of each tube transmits undistorted light.
  • Standard Taper cap style stopper.
  • 45325A-50 is supplied in a matched set of 6.
  • Graduated ring scale of any of the tubes within a set will not vary from that of any other tube within the set by more than 1.5 mm for the 50 mL size.
  • The 50 mL size is designed from ASTM D1209.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Graduation : 50 ml
  • Size (O.D. x L) : 20 x 312 mm
  • Scale Length : 200 - 220 mm
  • Packing : 6 unit/box
  • Brand : Kimble, USA

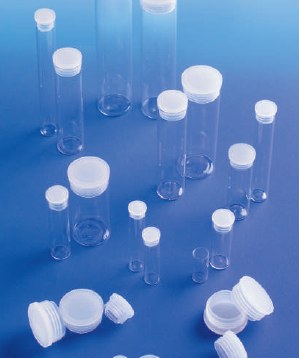

SPECIMEN TUBES
Brand : Samco

  • Soda glass.
  • Clear glass.
  • Push in cap
  • Flat bottom supplied with polythene (PE) stoppers.
  • Brand : Samco, UK
Model
O.D. x Height
Wall Thickness
Packing
SAMCO G050/20
12 x 50 mm
0.85 mm
100 units/box
SAMCO G050/22
12 x 75 mm
0.85 mm
100 units/box
SAMCO G050/26
19 x 50 mm
0.85 mm
100 units/box
SAMCO G050/27
19 x 75 mm
0.85 mm
100 units/box
SAMCO G050/28
25 x 50 mm
0.85 mm
100 units/box
SAMCO G050/29
25 x 75 mm
0.85 mm
100 units/box
SAMCO G050/30
25 x 100 mm
0.85 mm
100 units/box
SAMCO G050/31
25 x 150 mm
0.85 mm
100 units/box

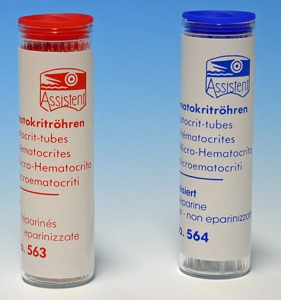

MICRO HEMATOCRIT TUBES
Brand : Assistent

  • Disposable, fire-polished ends; inside diameter equally over the total length (conicity 0.02 mm).
  • Ungraduated, for a volume of 40 µl, for use in hematocrit centrifuges.
  • Manufactured according to international specifications, with colour code.
  • Heparinized over the entire internal surface, with sodium heparin, with a red colour code at one end (563).
  • Not heparinized, with blue colour code at one end.
  • Inside Diameter : 1.1 to 1.2 mm
  • Outside Diameter : Approx. 1.5 mm
  • Brand : Assistent, Germany
Model
Type
Colour Code
Length
Packing
ASSISTENT 563
Heparinized
Red
75 mm ± 1 mm
100 units/tube and 10 tubes/box
ASSISTENT 564
Plain
Blue
75 mm ± 1 mm
100 units/tube and 10 tubes/box

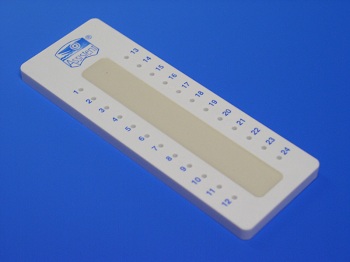

HEMATOCRIT SEALING MATERIAL
Brand / Product Code : Assistent / 566

  • For sealing of several hundred capillaries.
  • Non-drying, in plastic plates - for sealing micro hematocrit capillaries.
  • Each plate has numbered positions on both sides for placing capillaries.
  • The sealing material prevents the draining of the blood sample.
  • Brand : Assistent, Germany

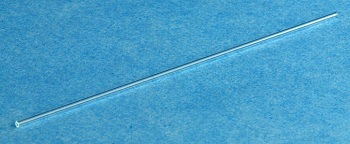

BLOOD CAPILLARIES
Brand / Product Code : Assistent / 560

  • For determination of the coagulation time, for blood typing and similar purposes, cut ends.
  • Length : Approx. 90 mm
  • Packing : 100 units/tube
  • Brand : Assistent, Germany







MELTING POINT CAPILLARY TUBE
Brand / Product Code : Kimble / 34502-99

  • KIMAX® melting point capillary tubes are used to determine the point at which a solid sample turns to liquid.
  • Tubes are 100 mm long when supplied with both ends open, so that approximately 90 mm will remain after sealing.
  • Tube length insures that the open end will extend well above the bath’s surface to prevent the bath liquid from entering the tube.
  • 34502-99 has a smaller I.D. and designed from requirements contained in the United States Pharmacopeia (USP).
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Length : 100 mm
  • Inside Diameter : 0.8 mm to 1.1 mm
  • Wall Thickness : 0.25 mm
  • Packing : 100 units/tube
  • Brand : Kimble, USA

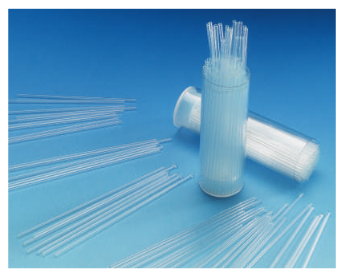

MELTING POINT CAPILLARY TUBES
Brand : Samco

  • Soda glass.
  • For melting point determinations.
  • Outside Diameter : 1.8 mm to 2.0 mm
  • Thickness of Wall : 0.28 mm to 0.32 mm
  • Brand : Samco, UK
Model
Length
Type
Packing
SAMCO G119/01
75 mm
Open both ends
100 units/tube
SAMCO G119/31
100 mm
Sealed one end
100 units/tube
SAMCO G119/32
100 mm
Sealed both ends
100 units/tube







SCINTILLATION VIAL (PLASTIC)
Brand / Product Code : Kimble / 58504-20

  • Polyethylene 20mL scintillation vials with attached caps.
  • Vials are packaged in cellular trays which have alphanumeric coordinates for fast, easy identification.
  • Caps attached
  • Each cellular tray contains 100 vials
  • Five trays per case, shrink-wrapped to preserve cleanliness
  • Vials are manufactured from high density polyethylene
  • Capacity : 20 mL
  • Size (O.D. x H) : 27 x 57 mm
  • Cap Material : Polypropylene(PP)
  • Cap Liner : Pulp-backed foil
  • Packing : 100 units/tray and 5 trays/box
  • Brand : Kimble, USA







SCINTILLATION VIAL (GLASS)
Brand / Product Code : Kimble / 74504-20

  • Glass 20 mL scintillation vials with attached caps.
  • Vials packaged in cellular trays which have alphanumeric coordinates for fast, easy identification.
  • Each tray contains 100 vials.
  • Five trays per case, shrink-wrapped to preserve cleanliness.
  • Vials are manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Capacity : 20 mL
  • Size (O.D. x H) : 27 x 57 mm
  • Cap Material : Polypropylene (PP)
  • Cap Liner : Pulp-backed foil
  • Packing : 100 units/tray and 5 trays/box
  • Brand : Kimble, USA







VIALS (CLEAR GLASS)
Brand : Kimble

  • Clear screw thread sample vials.
  • Closed-top black phenolic closures with rubber liners, attached.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Brand : Kimble, USA
Model
Capacity
O.D. x Height
GPI Finish
Packing
KIMBLE 60940D-12
2 mL
12 x 35 mm
8-425
144 units/box
KIMBLE 60940D-1
4 mL
15 x 45 mm
13-425
144 units/box
KIMBLE 60940D-2
8 mL
17 x 60 mm
15-425
144 units/box
KIMBLE 60940D-3
12 mL
19 x 65 mm
15-425
144 units/box
KIMBLE 60940D-4
16 mL
21 x 70 mm
18-400
144 units/box
KIMBLE 60940D-6
24 mL
23 x 85 mm
20-400
144 units/box

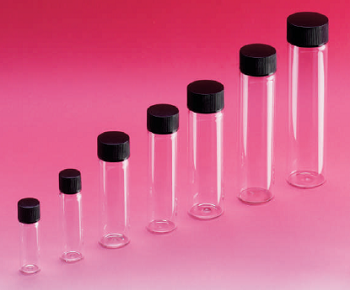

SCREW NECK VIALS (GLASS)
Brand : Samco

  • Screw Neck Vials.
  • Neutral glass.
  • Tall form.
  • Black polypropylene caps with foil-faced wads.
  • Brand : Samco, UK
Model
Capacity
Dia. x Height
Neck Bore
Packing
SAMCO T101/V1
1.75 mL
11.0 x 36 mm
5.5 mm
144 units/box
SAMCO T101/V2
3.50 mL
12.5 x 46 mm
5.5 mm
144 units/box
SAMCO T101/V3
7.00 mL
17.0 x 58 mm
9.0 mm
144 units/box
SAMCO T101/V4
10.50 mL
17.0 x 67 mm
9.0 mm
144 units/box
SAMCO T101/V5
14.00 mL
20.0 x 72 mm
13.0 mm
144 units/box
SAMCO T101/V6
21.25 mL
21.0 x 86 mm
13.0 mm
144 units/box
SAMCO T101/V7
28.25 mL
23.0 x 96 mm
13.0 mm
144 units/box







VIAL (CLEAR GLASS)
Brand / Product Code : Kimble / 60957C-6

  • LOW FORM VIALS WITH PHENOLIC CAPS AND POLYVINYL-FACED LINERS
  • Clear screw thread sample vial
  • Closed-top black phenolic closure with polyvinyl-faced pulp liner
  • Manufactured from 51 expansion borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class B requirements
  • Capacity : 24 ml
  • Size (O.D. x H) : 28 x 70 mm
  • Packing : 144 pcs/box
  • Brand : Kimble, USA







VIALS (CLEAR GLASS)
Brand : Kimble

  • Low form vial, clear glass, screw thread sample vials.
  • Closed-top black phenolic closure with rubber liner
  • Manufactured from 51 expansion borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class B requirements.
  • Brand : Kimble, USA
Model
Capacity
O.D. x Height
GPI Finish
Packing
KIMBLE 60957D-4
20 mL
28 x 57 mm
24-400
144 units/box
KIMBLE 60957D-6
24 mL
28 x 70 mm
24-400
144 units/box
KIMBLE 60957D-11
41 mL
28 x 108 mm
24-400
144 units/box







VIAL WITH SILICONE SEPTA
Brand / Product Code : Kimble / 60942A-40

  • Clear glass screw thread sample vial.
  • Open-top black polypropylene closures with PTFE-faced silicone septa, attached.
  • Vials packed in corrugated trays with partitions.
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
  • Capacity : 40 mL
  • O.D. x Height : 28 x 98 mm
  • GPI Finish : 24-400
  • Packing : 72 unit/box
  • Brand : Kimble, USA







VIALS (AMBER GLASS)
Brand : Kimble

  • Amber glass vials with caps and liners
  • Closed-top black phenolic closures with PTFE-faced white rubber liners, attached.
  • Manufactured from 51 expansion borosilicate amber glass conforming to USP Type I requirements.
  • Brand : Kimble, USA
Model
Capacity
O.D. x Height
GPI Finish
Packing
KIMBLE 60920D-1
4 mL
15 x 45 mm
13-425
144 units/box
KIMBLE 60920D-4
16 mL
21 x 70 mm
18-400
144 units/box
KIMBLE 60920D-8
30 mL
25 x 95 mm
22-400
144 units/box







ROLLED RIM VIALS (GLASS)
Brand : Samco

  • Neutral glass.
  • Polythene clip-on closure.
  • Brand : Samco, UK
Model
Capacity
Dia. x Height
Neck Bore
Packing
SAMCO T103/V1
7.00 mL
23.0 x 34 mm
17.15 mm
190 units/box
SAMCO T103/V3
14.00 mL
25.5 x 48 mm
17.15 mm
162 units/box
SAMCO T103/V4
21.25 mL
25.5 x 66 mm
17.15 mm
162 units/box
SAMCO T103/V5
28.25 mL
27.5 x 72 mm
17.15 mm
140 units/box







PLASTIC CLOSURES
Brand : Kimble

  • CULTURE TUBE CLOSURES
  • KIM-KAP polypropylene closures for culture tubes.
  • Autoclavable
  • Color coded
  • Material : Polypropylene (PP)
  • Brand : Kimble, USA
Model
Description
Colour
Packing
KIMBLE 73660-13
Fits 13 mm O.D. tube
Natural
100 pcs/pack
KIMBLE 73660-16
Fits 16 mm O.D. tube
Natural
100 pcs/pack
KIMBLE 73660-18
Fits 18 mm O.D. tube
Natural
100 pcs/pack
KIMBLE 73660-20
Fits 20 mm O.D. tube
Natural
100 pcs/pack
KIMBLE 73660-25
Fits 25 mm O.D. tube
Natural
100 pcs/pack
KIMBLE 73660-38
Fits 38 mm O.D. tube
Natural
250 pcs/pack
KIMBLE 73662-13
Fits 13 mm O.D. tube
Red
100 pcs/pack
KIMBLE 73662-16
Fits 16 mm O.D. tube
Red
100 pcs/pack
KIMBLE 73662-18
Fits 18 mm O.D. tube
Red
100 pcs/pack
KIMBLE 73662-20
Fits 20 mm O.D. tube
Red
100 pcs/pack
KIMBLE 73662-25
Fits 25 mm O.D. tube
Red
100 pcs/pack

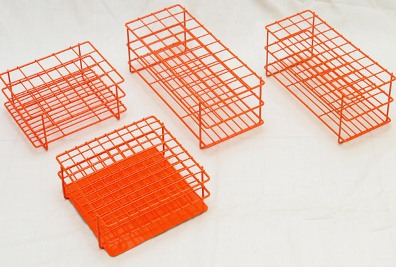

TEST TUBE RACK
Brand : Labmart
  • Test tube rack
  • Rack of different dimension and size of hole
  • Autoclavable (121 °C, 15 psi/ 100 kPa above atmospheric pressure)
  • Material : Epoxy-tech coated metal wire
  • Brand : Labmart, Malaysia
Model
Holes Diameter
Hole Format
No. Holes
Dimension
LABMART SM300-13
13 mm
10 x 10
100 holes
230 x 230 x 55 mm
LABMART SM300-18
16 mm
4 x 10
40 holes
230 x 85 x 90 mm
LABMART SM300-20
20 mm
4 x 10
40 holes
240 x 85 x 90 mm
LABMART SM300-26
26 mm
4 x 10
40 holes
280 x 105 x 90 mm

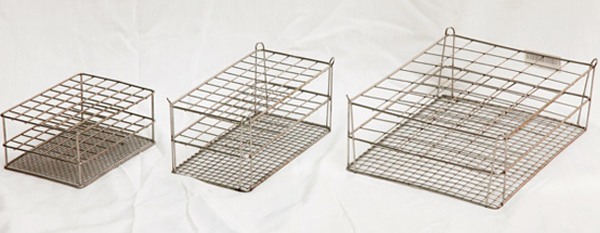

TEST TUBE RACK
Brand : Raypa
  • Stainless steel wire racks
  • Material : Stainless steel
  • Brand : Raypa, Spain
Model
Holes Diameter
Hole Format
No. Holes
Dimension
RAYPA 24690178 (GR-178)
16 mm
8 x 6
48 holes
158 x 120 x 70 mm
RAYPA 24930159 (GR-159)
19 mm
10 x 5
50 holes
221 x 117 x 100 mm
RAYPA 25010192 (GR-192)
31 mm
8 x 6
48 holes
277 x 210 x 100 mm

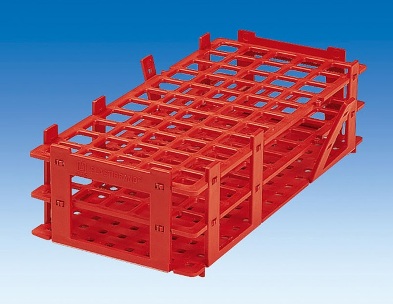

TEST TUBE RACK
Brand : Vitlab
  • Test tube racks, coloured
  • Stackable, simple, and small footprint.
  • Alphanumerically identified positions.
  • Suitable for tempering in a water bath as well as storage of samples in the refrigerator and incubation in a climate chamber.
  • The racks are supplied as folded out flat, and can be firmly and inseparably joined together in just a few steps.
  • Working temperatures of -20 to +90 °C.
  • Autoclavable at 121 °C (2 bar) according to DIN EN 285.
  • Material : Polypropylene (PP)
  • Brand : Vitlab, Germany
Model
Holes Diameter
Hole Format
No. Holes
Dimension
VITLAB 3190948
13 mm
6 x 14
84 holes
265 x 126 x 75 mm
VITLAB 3191948
16 mm
5 x 11
55 holes
265 x 126 x 75 mm
VITLAB 3193943
20 mm
4 x 10
40 holes
265 x 126 x 75 mm
VITLAB 3194943
25 mm
4 x 8
32 holes
265 x 126 x 88 mm
VITLAB 3195943
30 mm
3 x 7
21 holes
265 x 126 x 88 mm

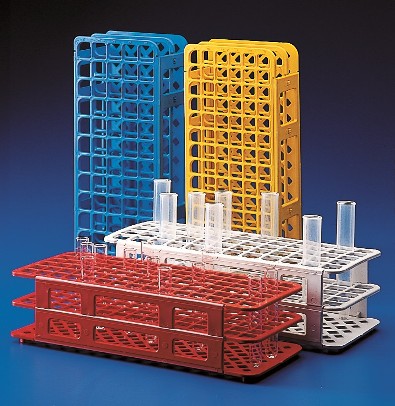

TEST TUBE RACK
Brand : Kartell
  • Universal test tube rack
  • Large capacity racks
  • Autoclavable at +121°C for 20 minutes
  • Can be used dry, wet, in waterbaths. Will not float.
  • Special design allows samples to be incubated at same temperature
  • Can be used in freezers without deforming or going brittle.
  • Will not rot, rust or deform
  • Alpha numerical grid reference on top tier for easy identification of samples
  • Colour coded for bath work
  • Stackable when empty
  • Material : Polypropylene (PP)
  • Brand : Kartell, Italy
Model
Holes Diameter
Hole Format
No. Holes
Dimension
KARTELL 564
13 mm
6 x 15
90 holes
105 x 246 x 64 mm
KARTELL 565
16 mm
5 x 12
60 holes
105 x 246 x 72 mm
KARTELL 566
20 mm
4 x 10
40 holes
105 x 246 x 72 mm
KARTELL 567
25 mm
4 x 10
40 holes
125 x 295 x 85 mm
KARTELL 568
30 mm
3 x 8
24 holes
112 x 300 x 85 mm







CENTRIFUGE TUBE RACK
Brand : GLW
  • ''Blue Rack'', the GLW workstation rack made out of reinforced polypropylene especially suited for 15 ml / 50 ml tubes up to 17 mm / 30 mm diameter from all manufacturers
  • Unique screw assembly provides superior durability and assured stability.
  • Space efficient designed i.e. for use in the safety cabinet
  • Use in freezer down to -90°C, Autoclavable up to +121°C
  • Material : Polypropylene (PP)
  • Brand : GLW, Germany
Model
Description
Size (L x W x H)

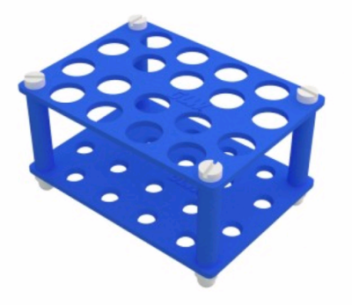

GLW G18
18 holes x 17 mm diameter (For 15 ml centrifuge tube)
122 x 88 x 70 mm

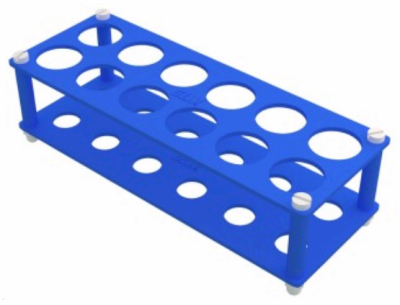

GLW G26
12 holes x 30 mm diameter (For 50 ml centrifuge tube)
234 x 88 x 70 mm







MICROCENTRIFUGE TUBE RACK
Brand : Eppendorf

  • Eppendorf Tube Racks are ideal for sample processing, transport, and short- to mid–term storage of samples. They help to organize and process your samples in a clearly arranged way.
  • Ergonomic design
  • Numbered slots
  • UV-resistant
  • Autoclavable (121°C, 20 min)
  • Stackable
  • Brand : Eppendorf, Germany
Model
Description
EPPENDORF 0030123107
Tube rack for 24 x 0.5 ml
EPPENDORF 0030123115
Tube rack for 24 x 1.5 ml

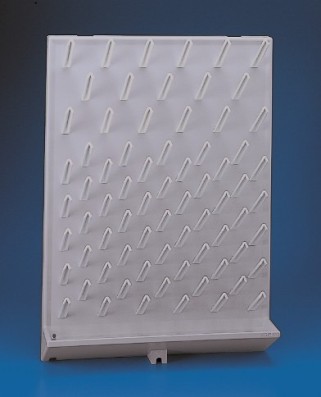

DRAINING RACK

Brand / Product Code : Kartell / 213

  • The back plate of the 72 place support is made from a single mould of 4 mm rigid HIPS.
  • The peg sockets have closed ends eliminating leakage and consequent biohazards.
  • The seamless drip channel collects waste which drains via drain tube provided.
  • 72 push in pegs which can accomodate items with “neck” bore in excess of 15 mm are supplied and 11 small pegs of diameter 6 mm for small diameter items such as test tubes.
  • They are easily removable for cleaning or to accomodate particularly shaped items. This rack will not stain or rust.
  • Comes complete with mounting kit, draining hose, and fixing template.
  • Additional racks can be joined together to make a bank of racks, using the joining plugs provided.
  • Supplied with draining kit (connector + tubes). Discharging tube : internal 11 mm, external 13 mm.
  • No. of places : 72
  • Dimension : 450 x 630 x 110 mm
  • Material : High Impact PS
  • Brand : Kartell, Italy





© 2008 A.R. ALATAN SAINS (K) SDN. BHD.

000webhost logo
