THIN LAYER CHROMATOGRAPHY (TLC)

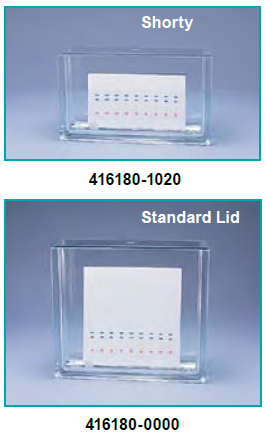

TLC DEVELOPING TANKS
Brand : Kimble

  • Rectangular TLC Developing Tanks with standard lid.
  • TLC Developing Tanks are manufactured from sturdy molded glass bricks thatn will withstand regular use for many years.
  • The clear sides allow unobstructed visual inspection of TLC plates up to 20 x 20 cm in size.
  • The top of the tanks are ground flat to match the lids and the edges are beveled to remove any sharp edges.
  • The bottoms are ground to provide a flat, level surface.
  • A raised ridge along the inside bottom allows the simultaneous development of two 20 x 20 cm or four 5 x 20 cm plates (KIMBLE 416180-0000).
  • SHORTY” tank was developed for use with 10 cm x 10 cm plates but it will also accommodate 5 x 10 cm or 10 x 20 cm plates, turned long side down.
  • Both tanks have a raised ridge to support plates during development and are supplied with standard lids.
  • Brand : Kimble, USA
Model

Inside Dimension

(W x D x H)

Weight

Using with Plate Size

(W x H)

KIMBLE 416180-0000
27 cm x 7 cm x 25 cm
Approx. 5.4 kg
20 cm x 20 cm
KIMBLE 416180-1020
27 cm x 7 cm x 11 cm
-
10 cm x 20 cm / 10 cm x 10 cm

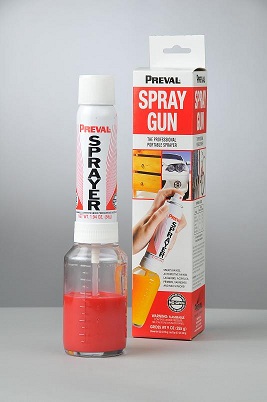

TLC SPARY
Brand : Preval

  • Compressed Gas Sprayers provide a constant pressure and uniform distribution of fine mist on your TLC plate.
  • Compact, well-designed spray canister delivers fine mist with CFC-free propellant. The pressure unit contains difluoroethane.
  • Permits control of reagent delivery, for even coverage and minimal waste.
  • Unit sprays up to 16 oz of liquid.
  • Gas canister serves as handle; cap fits standard 38-400 thread reagent bottles.
  • Kit includes one propellant canister and one 6-ounce (150 ml) glass bottle.
  • Caution : Wetted parts are made of polypropylene or nylon. Do not store with dip tube immersed in reagent.
  • Brand : Preval, USA
