OVERHEAD STIRRER



OVERHEAD STIRRER PACKAGE
Brand / Model / Product Code : IKA / RW 20 digital / 9011600
  • Bringing the future to your laboratory.
  • With digital display.
  • Robust, slimline, ergonomic design.
  • Technical improvements on the trusted RW 20 series designs.
  • With constant power-drive.
  • Two speed ranges for universal use from 60 - 2.000 rpm.
  • Push-through agitator shafts (only when stationary)

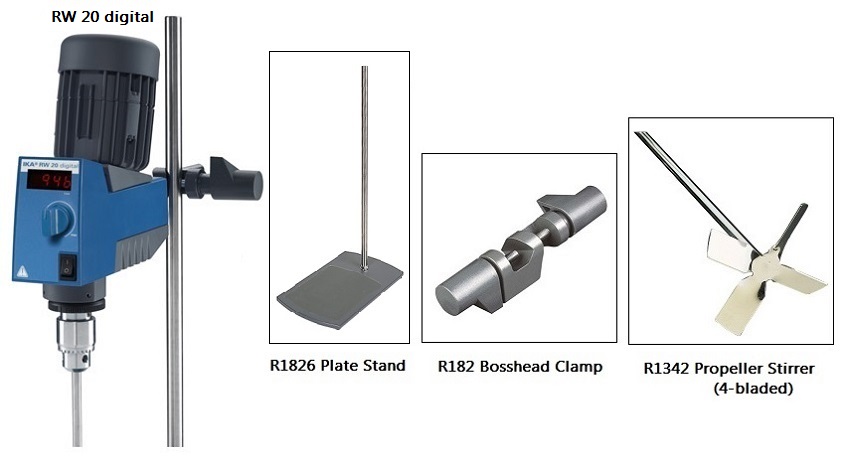

  • Package includes :-
    • RW 20 digital Overhead Stirrer (Cat No : 3593000)
    • R1826 Plate Stand (Cat No : 3160100)
    • R182 Bosshead Clamp (Cat No : 2657700)
    • R1342 Propeller Stirrer (Cat No : 0741000)
  • Stirring quantity max. (H2O) : 20 Liter
  • Motor rating output : 35 W
  • Speed display : LED
  • Speed range : 60 - 2000 rpm
  • Speed range I (50 Hz) : 60 - 500 rpm
  • Speed range II (50 Hz) : 240 - 2000 rpm
  • Viscosity max. : 10000 mPas
  • Speed control : Stepless
  • Brand : IKA, Germany

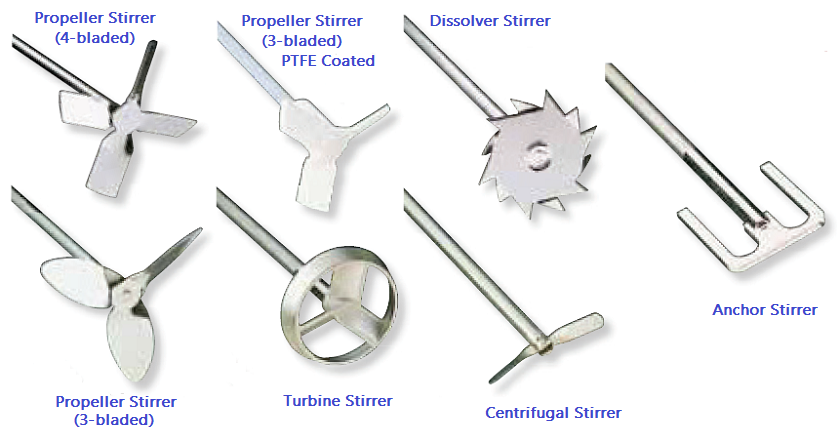

STIRRING ELEMENTS FOR IKA RW 20 digital
Brand : IKA
  • Propeller stirrer, 4-bladed - Standard stirring element. For drawing the material to be mixed from the top to the bottom. Local shearing forces. Generates axial flow in the vessel. Used at medium to high speeds.
  • Propeller stirrer, 3-bladed - Flow-eEcient design. For drawing the material to be mixed from the top to the bottom. Minimum shearing forces. Used at medium to high speeds.
  • Turbine stirrer - For drawing the material to be mixed from above. Generates axial flow in the vessel. Minimum danger
    of injury when contact is made with vessel. Minimum shearing forces. Used at medium to high speeds.
  • Dissolver stirrer - Radial flow, for drawing the material to be mixed from the top and the bottom. High turbulence, high
    shearing forces. Particle reduction. Used at medium to
    high speeds.
  • Centrifugal stirrer - Two-bladed, blades open with increasing speed. For stirring in round vessels with narrow necks. Effect is similar to that of a 4-bladed propeller stirrer. Medium to high speeds required.
  • Anchor stirrer - Tangential flow, high shearing rate at edges, minimum deposits on the vessel wall. Used at low speeds. Polymer reactions, even distribution of high mineral
    contents in liquids. The ideal stirrer for medium to highly viscous fluids.
  • Brand : IKA, Germany

Model
Descriptions
Stirrer Dia.
Shaft Dia.
Shaft Length
Max speed
IKA 0741000
R1342 Propeller stirrer (4-blade)
50 mm
8 mm
350 mm
2000 rpm
IKA 1296000
R1381 Propeller stirrer (3-blade)
45 mm
8 mm
350 mm
2000 rpm
IKA 1295900
R1382 Propeller stirrer (3-blade)
55 mm
8 mm
350 mm
2000 rpm
IKA 2343600
R1389 Propeller stirrer (3-blade)
(PTFE-coated)
75 mm
8 mm
350 mm
800 rpm
IKA 2332900
R1311 Turbine Stirrer
30 mm
8 mm
350 mm
2000 rpm
IKA 2333000
R1312 Turbine Stirrer
50 mm
8 mm
350 mm
2000 rpm
IKA 0513500
R1300 Dissolver stirrer
80 mm
8 mm
350 mm
2000 rpm
IKA 2746700
R1303 Dissolver stirrer
42 mm
8 mm
350 mm
2000 rpm
IKA 0756900
R1352 Centrifugal stirrer
60 / 15 mm
8 mm
350 mm
2000 rpm
IKA 2022300
R1330 Anchor stirrer
45 mm
8 mm
350 mm
1000 rpm
