A.R. ALATAN SAINS (K) SDN. BHD.

MICROSCOPES & ACCESSORIES

MONOCULAR MICROSCOPE (MIRROR)

Model : XSP-12

Magnification : 40x - 400x
Mirror : Plan-concave
Packing : Wooden box
Country of origin : China

MONOCULAR MICROSCOPE (ELECTRIC)

Model : SME-F

Eyepiece : 10x and 16x
Objective : 4x, 10x and 40x
Magnification : 40x - 640x
Illuminator : Build in 20W tungsten light bulb with condenser and blue filter
Packing : Protected Styrofoam Case
Country of origin : China

BINOCULAR MICROSCOPE (ELECTRIC)

Model : XSP-136(A)

Eyepiece : 10x and 16x
Objective : 4x, 10x, 60x and 100x
Magnification : 40x - 1600x
Illumination : 6V/20W Halogen lamp with adjustable brightness
Packing : Protected Styrofoam Case
Country of origin : China

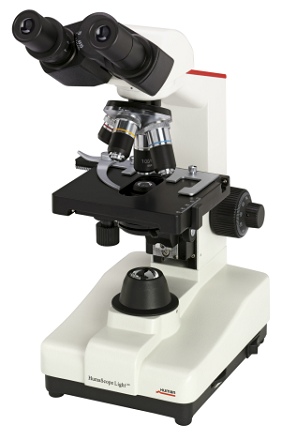

BINOCULAR MICROSCOPE (ELECTRIC / BATTERY)

Brand / Model / Product Code : HUman / HumaScope Light LED / 14400

The HumaScope line constitues a new generation of binocular laboratory microscopes in modern ergonomic design and latest LED-technology.
They are developed for use in laboratories, doctor's office, education and research.
Eyepiece : 10X / 18 mm
Objective : 4X, 10X, 60X and 100X
Magnification : 40X - 1000x
Illumination : LED lamp 3.6V / 0.3 W with adjustable Intensity.
Electrical requirements : External power supply 230 VAC, 50/60 Hz or rechargeable batteries 3 x 1.2 V 1800 mAh, running time 30 hours. Batteries not included.
Brand : Human, Germany.

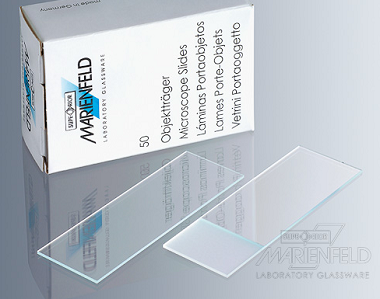

MICROSCOPE SLIDE (1-END FROSTED)

Brand / Product Code : Superior / 1000200

Made of soda lime glass of 3. hydrolytic glass.
With cut edges, standard packing, frosted type.
In compliance with DIN ISO 8037/1.
Frosted microscope slides dispose about a silky frosted marking area of approx. 20 mm (at one end, on both sides).
Pre-cleaned.
Ready for use.
Autoclavable.
Approved for in-vitro diagnostic (IVD) applications according to IVD directive 98/79/EC, with CE-mark, recommended best before date and batch number for comprehensive information and traceability
Slide Size : 76 x 26 mm
Thickness : Approx. 1 mm
Packing : 50 units/box
Brand : Superior, Germany

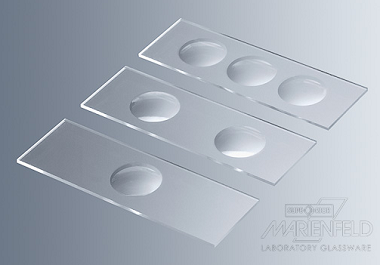

MICROSCOPE SLIDE (3 Cavities)

Brand / Model : Superior / 1320202

The cavities of our microscope slides are carefully ground and polished. This results in grooveless, immaculate surfaces.
Made of soda lime glass of 3. hydrolytic class.
With 90° ground edges.
Pre-cleaned.
Ready for use.
Autoclavable.
Approved for in-vitro diagnostic (IVD) applications according to IVD directive 98/79/EC, with CE-mark, recommended best before date and batch number for comprehensive information and traceability
Slide Size : 76 x 26 mm
Number of Cavities : 3
Cavities Diameter : Approx. 15 mm to 18 mm
Cavities Depth : Approx. 0.6 mm to 0.8 mm
Thickness : Aprrox. 1.2 mm to 1.5 mm
Packing : 10 units/pack
Brand : Superior, Germany

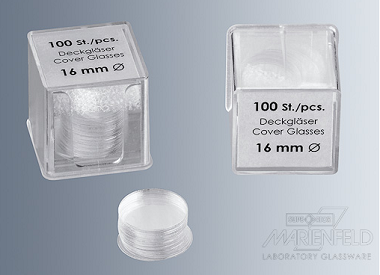

COVER GLASSES (CIRCULAR SHAPE)

Brand : Superior

Made of chemically resistant borosilicate glass D 263™ M of the first hydrolytic class.
Absolutely colourless, perfectly clear, suitable for fluorescence microscopy.
In compliance with DIN ISO 8255.
In two-part plastic boxes containing 100 pieces, 10 boxes in a carton.
Approved for in-vitro diagnostic (IVD) applications according to IVD directive 98/79/EC, with CE - mark and batch number for comprehensive information and traceability
Thickness : 0.13 mm to 0.16 mm (No. 1)
Packing : 100 units/box
Brand : Superior, Germany

Model	Size (Dia.)
SUPERIOR 0111500	10 mm
SUPERIOR 0111520	12 mm
SUPERIOR 0111530	13 mm
SUPERIOR 0111560	16 mm

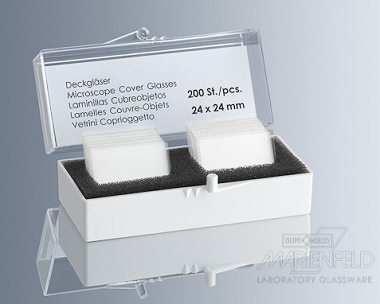

COVER GLASSES (SQUARE & RECTANGLE SHAPE)

Brand : Superior

Marienfeld Superior cover glasses feature an excellent flatness and smooth surfaces thanks to the best material.
Even when archived for years preparations keep their optical quality thanks to our noncorroding glass and the particularly low tolerance of the material thickness.
All of our efficient processes include a stringent, integrated quality control and thus ensure high quality coverslips which do not stick together.
Our coverslips are ready for use and well suited for application in automated coverslippers. All these characteristics result in significant advantages for the user.
Made of chemically resistant borosilicate glass D 263™ M of the first hydrolytic class.
Absolutely colourless, perfectly clear, suitable for fluorescence microscopy.
In compliance with DIN ISO 8255.
Approved for in-vitro diagnostic (IVD) applications according to IVD directive 98/79/EC, with CE - mark and batch number for comprehensive information and traceability.
Thickness : 0.13 mm to 0.16 mm (No. 1)
Packing : 200 units/box
Brand : Superior, Germany

Model	Size (W x L)	Model	Size (W x L)
SUPERIOR 0101030	18 x 18 mm	SUPERIOR 0101152	22 x 60 mm
SUPERIOR 0101040	20 x 20 mm	SUPERIOR 0101172	24 x 32 mm
SUPERIOR 0101050	22 x 22 mm	SUPERIOR 0101192	24 x 40 mm
SUPERIOR 0101060	24 x 24 mm	SUPERIOR 0101222	24 x 50 mm
SUPERIOR 0101122	22 x 40 mm	SUPERIOR 0101242	24 x 60 mm
SUPERIOR 0101142	22 x 50 mm

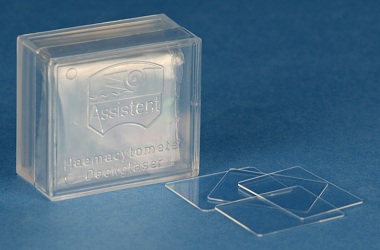

COVER GLASS FOR HEMACYTOMETER Brand / Product Code : Assistent / 415/7
	Cover glasses for hemacytometer (blood test), precision type (standard size). Size (W x L) : 20 x 26 mm Thickness : 0.4 mm Packing : 10 pieces/box Brand : Assistent, Germany

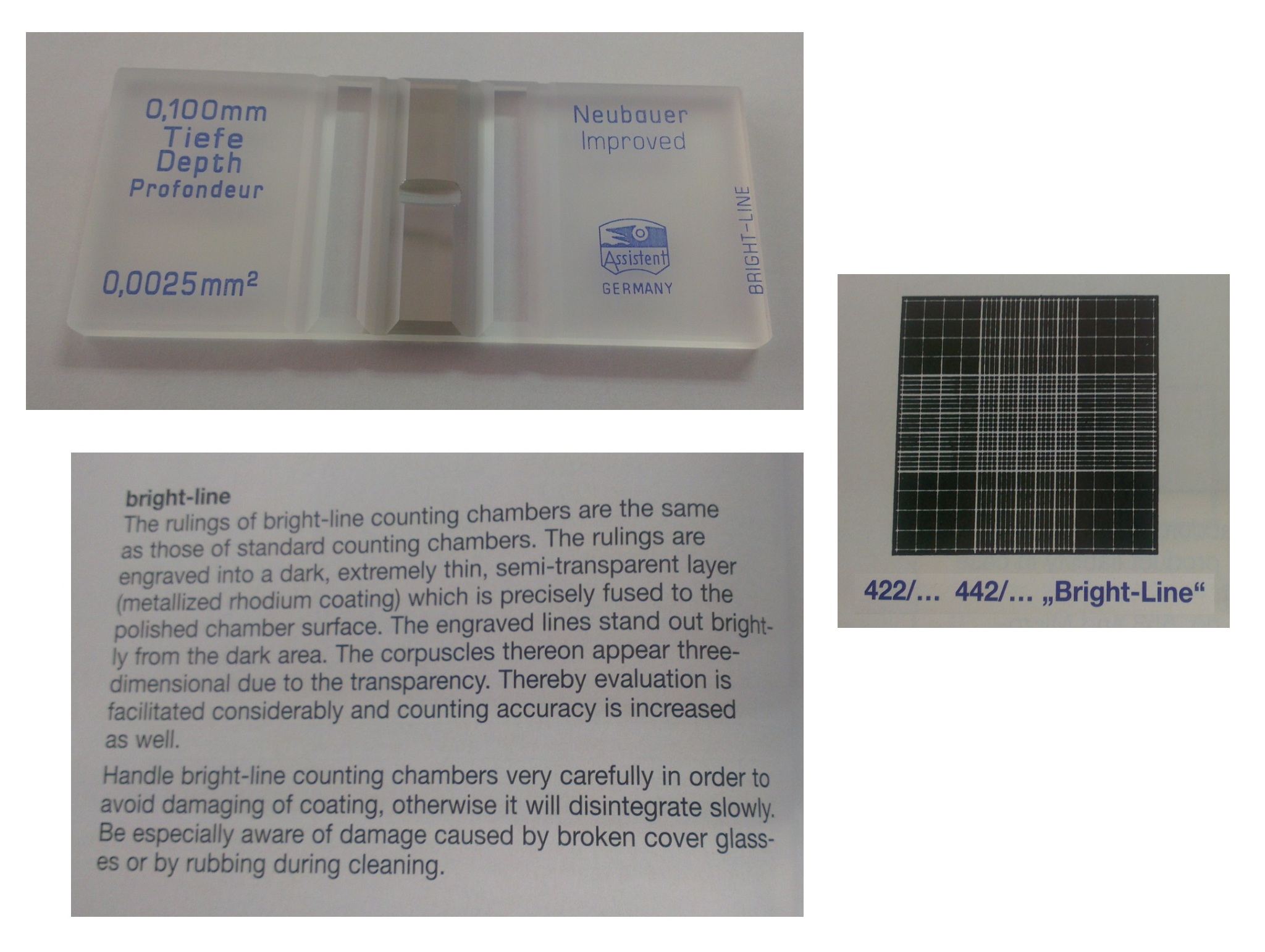

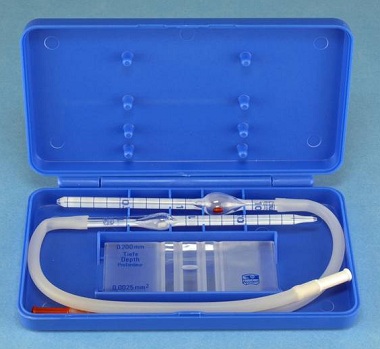

HEMACYTOMETER

Brand / Product Code : Assistent / 422/12

Hemacytometer, Neubauer improved, bright-lined, complete set.
Precision type, complete in a case consisting of 1 erythrocyte pipette, 1 leucocyte pipette, 2 rubber tubings with mouthpieces, 1 counting chamber, 2 optically plane cover glasses and directions for use.
Improved Neubauer ruling
- Total area of ruling: 9.0 mm²
- 9 large squares of 1 mm² each as Neubauer ruling.
- The central square of 1 mm² contains - owing to the closer intermediate lines - 25 squares of 16 mini squares of 0.05 x 0.05 mm each.
- Erythrocytes and leucocytes counting as indicated above.
Depth : 0.100 mm
Packing : 1 set/case
Brand : Assistent, Germany

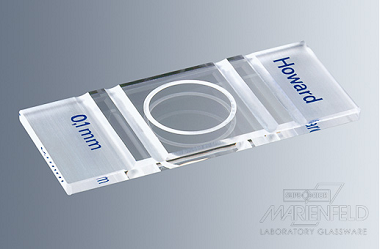

HOWARD COUNTING CHAMBER

Brand / Product Code : Superior / 0610940

For the investigation of fruit juices.
Counting chamber without cover glass.
With 2 counting lines (thickness 1.5 to 2 μm) Approx. 1402 μm apart.
Cover glass for Howard counting chamber (Product Code : 0333001) sold separately.
Cover glass approx. 25 x 40 x 0.4 mm, ground edges
without mask.
Diameter of Ring (Internal) : Approx. 18 mm
Diameter of Ring (External) : Approx. 22 mm
Depth of chamber : 0.1 mm ± 2 %
Packing : 1 unit/pack
Brand : Superior, Germany

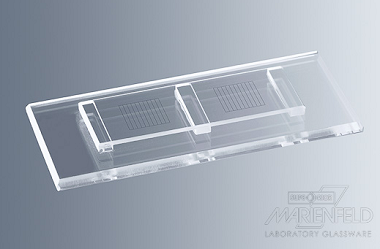

MCMASTER COUNTING CHAMBER Brand / Product Code : Superior / 0611240
	McMaster counting chamber with 2 grids. For counting worm eggs. Suitable for solid media. The cover glass with 2 counting grids approx. 10 x 10 mm (divided into 10 parts) on 3 supports affixed. Distance between bottom plate and cover glass approx. 1.5 mm. Dimensions : Approx. 75 x 32 mm Packing : 1 unit/pack Brand : Superior, Germany

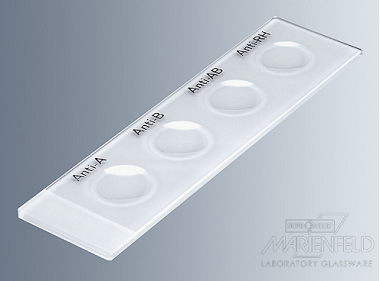

BLOOD GROUPING SLIDE Brand / Product Code : Superior / 1423213
	Made of white flashed opal glass. With ground edges. With frosted marking area. With 4 ground, polished and marked cavities labelled as : ANTI-A, ANTI-B, ANTI-AB, ANTI-Rh. Without CE-mark, only for sale and application outside EC Cavities : Approx. 20 mm diameter, Approx. 1.75 mm depth Packing : 1 unit/pack Brand : Superior, Germany

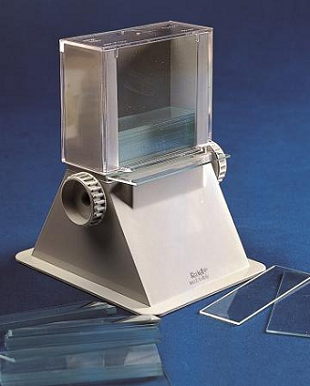

SLIDE DISPENSER

Brand / Product Code : Kartell / 540

For finger print free dispensing of 76 x 26 mm microscope slides.
Up to 50 slides can be put in the magazine.
A cover protects the slides from dust.
Each slide is dispensed by rotating the knurled knob on either side of the moulded base.
Rubber rollers at the sides of the slides ease out the slide which can then be handled by the edges.
Material : ABS/PS
Dimension (L x W x H) : 100 mm x 120 mm x 140 mm
Brand : Kartell, Italy

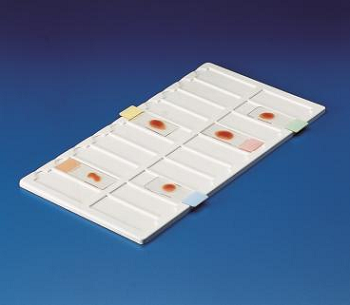

TRAY FOR MICROSCOPE SLIDES Brand / Product Code : Kartell / 672
	PVC tray for 20 unit microscope slide Moulded in white PVC for easy identification of different dyes on the slides. Ideal work station for 76 x 26 mm slides. Designed for easy removal of slides. Material : PVC Dimension (W x L x H) : 190 mm x 340 mm x 8 mm Brand : Kartell, Italy

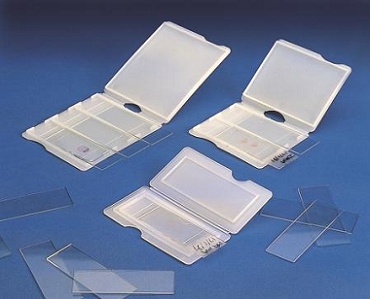

SLIDE MAILER Brand / Product Code : Kartell / 924
	Strong protection for 76 x 26 mm specimen slides during transportation. Each slide has its own compartment with support bars at 55 mm centres to protect subject matter from being scuffed. Particularly useful for cytologic and geological specimens. No. Places : 3 slides Material : Polyethylene (PE) Dimension (W x L x H) : 84 mm x 97 mm x 6 mm Brand : Kartell, Italy

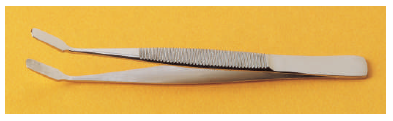

COVER SLIP FORCEP Brand / Product Code : Samco / L325/01
	Great for holding and manipulating delicate cover slips during the preparation of slides. Allow accurate placement without breaking cover slips. Material : Stainless steel Brand : Samco, UK

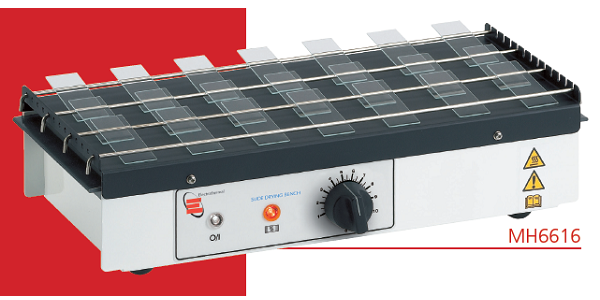

SLIDE DRYING BENCH

Brand / Product Code : Electrothermal / MH6616

The Slide Drying Bench aids in the preparation of microscope slides at the specimen mounting stage.
Accepting up to 50 slides, it has the facility for drying slides in different orientations - across the drying support bars, angled from the bars, or flat without the bars.
There is an On/Off switch and "Power On" white neon and "Heater On" amber neon indicators.
The silicone rubber mat element heater provides heating up to 100°C, and the temperature is controlled from 10°C to 100°C by a built-in energy regulator.
The case and top are powder-coated aluminium and the unit comes complete with handy carrying handles.

Replacement elements easy fitted by user.
Capacity : 50 slides
Dimension (D x W x H) : 180 mm x 390 mm x 95 mm
Weight : 1.8 kg
Brand : Electrothermal, UK

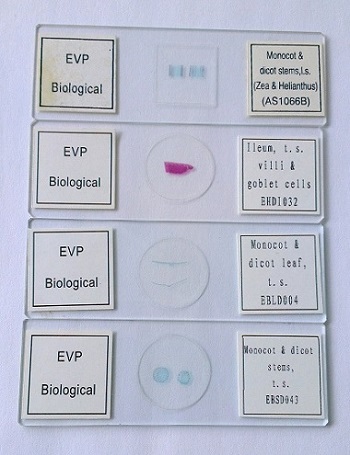

PREPARED MICROSCOPE SLIDES

Country of Origin : China

Choose from high-quality, hand-prepared sets with the prepared slides you need for botany, zoology, histology, cytology & genetic.
This is an ideal microscope slide set for intermediate (pre-high school) use.
Supply without microscope slide box.
Microscope slide box sold separately.
Packing : 5 units/set
Country of Origin : China
