MEASURING CYLINDERS

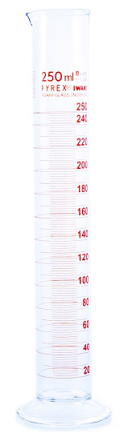

MEASURING CYLINDER (GLASS) Brand : Pyrex-Iwaki
	Measuring cylinder with spout and graduation. Clear glass, Class A. Tall form. Amber graduation. Glass round base. Material : Borosilicate glass Brand : Pyrex-Iwaki

Model	Capacity	Graduation	Height	Packing
PYREX-IWAKI 3022-5N	5 mL	0.1 mL	125 mm	10 units/box
PYREX-IWAKI 3022-10N	10 mL	0.2 mL	137 mm	10 units/box
PYREX-IWAKI 3022-25N	25 mL	0.5 mL	167 mm	10 units/box
PYREX-IWAKI 3022-50N	50 mL	1.0 mL	200 mm	10 units/box
PYREX-IWAKI 3022-100N	100 mL	1.0 mL	250 mm	10 units/box
PYREX-IWAKI 3022-250N	250 mL	2.0 mL	305 mm	2 units/box
PYREX-IWAKI 3022-500N	500 mL	5.0 mL	360 mm	2 units/box
PYREX-IWAKI 3022-1000N	1000 mL	10.0 mL	420 mm	2 units/box
PYREX-IWAKI 3022-2000N	2000 mL	20.0 mL	485 mm	2 units/box

MEASURING CYLINDER (GLASS) Brand : GQ
	Measuring cylinder with spout and graduation. Tall form. Amber graduation. Glass hexagon base. Brand : GQ, China

Model	Volume	Subdivision	Tolerance
GQ 1601H-10	10 mL	0.2 mL	± 0.2 mL
GQ 1601H-25	25 mL	0.5 mL	± 0.5 mL
GQ 1601H-50	50 mL	1.0 mL	± 1.0 mL
GQ 1601H-100	100 mL	1.0 mL	± 1.0 mL
GQ 1601H-250	250 mL	2.0 mL	± 2.0 mL
GQ 1601H-500	500 mL	5.0 mL	± 5.0 mL
GQ 1601H-1000	1000 mL	10.0 mL	± 10.0 mL

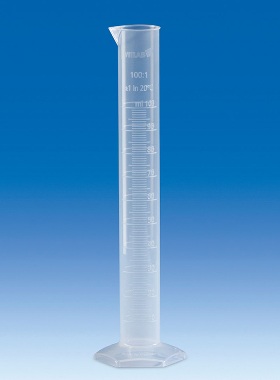

MEASURING CYLINDER (PLASTIC) Brand : Vitlab
	Highly transparent. With a raised scale and ring marks at the primary scale points. calibrated ‘In’. Class B tolerances according to DIN 12681 / ISO 6706. Hexagonal base with bottom studs provides high stability. Thermal stress up to 80 °C does not cause tolerance limits to be permanently exceeded. Material : Polypropylene (PP) Brand : Vitlab, Germany

Model	Volume	Graduation	Tolerance	Size (Dia. X H)
VITLAB 646941	10 ml	0.20 mL	± 0.20 mL	15 x 145 mm
VITLAB 647941	25 ml	0.50 mL	± 0.50 mL	22 x 170 mm
VITLAB 648941	50 ml	1.00 mL	± 1.00 mL	27 x 200 mm
VITLAB 649941	100 ml	1.00 mL	± 1.00 mL	33 x 250 mm
VITLAB 650941	250 ml	2.00 mL	± 2.00 mL	44 x 315 mm
VITLAB 651941	500 ml	5.00 mL	± 5.00 mL	58 x 360 mm
VITLAB 652941	1000 ml	10.00 mL	± 10.00 mL	69 x 440 mm
VITLAB 653941	2000 ml	20.00 mL	± 20.00 mL	97 x 482 mm

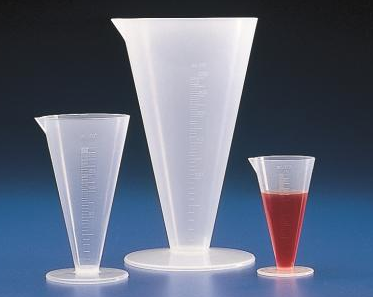

CONICAL MEASURES Brand : Kartell
	Graduated. Can withstand temperatures up to 120°C. They have a wide base for stability. SUITABLE FOR FOODSTUFF. Material : Polypropylene (PP) Brand : Kartell, Italy

Model	Capacity	Graduation	Height
KARTELL 422	100 ml	2 mL	118 mm
KARTELL 423	250 ml	5 mL	164 mm
KARTELL 424	500 ml	10 mL	183 mm
KARTELL 425	1000 ml	20 mL	263 mm

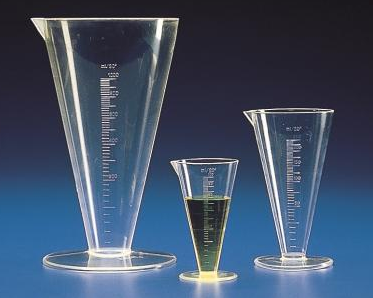

CONICAL MEASURES Brand : Kartell
	Graduated. Can withstand temperatures up to 170°C. They have a wide base for stability. SUITABLE FOR FOODSTUFF. Material : Polymethylpentene (PMP) Brand : Kartell, Italy

Model	Capacity	Graduation	Height
KARTELL 1422	100 ml	2 mL	117 mm
KARTELL 1423	250 ml	5 mL	162 mm
KARTELL 1424	500 ml	10 mL	183 mm
KARTELL 1425	1000 ml	20 mL	263 mm

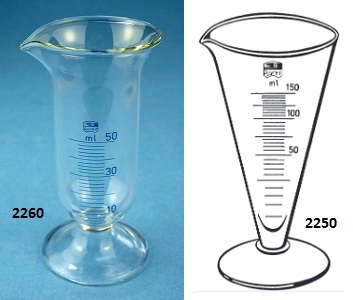

CONICAL MEASURES Brand : Assistent
	"Assistent" Measures, with base and spout, without handle, fused blue graduation “ASSISTENT-PERMANENT” highly contrasting scale, clearly legible figures, standard type, class B, tolerance: twice the official tolerance Graduated. Bell shape and conical shape. Material : Glass Brand : Assistent, Germany

Model	Capacity	Graduation	Shape
ASSISTENT 2260/10	10 ml	1 mL	Bell Shape
ASSISTENT 2250/25	25 ml	1 mL	Conical Shape
ASSISTENT 2250/50	50 ml	2 mL	Conical Shape
ASSISTENT 2250/100	100 ml	5 mL	Conical Shape
ASSISTENT 2250/250	250 ml	10 mL	Conical Shape
ASSISTENT 2250/500	500 ml	20 mL	Conical Shape
ASSISTENT 2250/1000	1000 ml	25 mL	Conical Shape

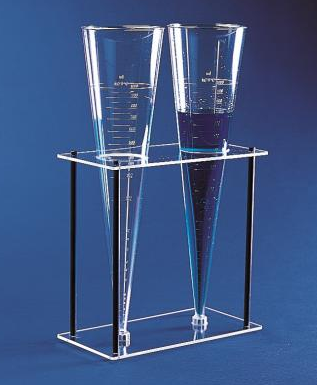

SEDIMENTATION IMHOFF CONE

Brand : Kartell

Crystal clear Imhoff cone.
Permanently moulded graduations.
Easy draining via PP screw plug in the base.
Back flush cleaning easily effected.
Stand not included.
Capacity : 1000 ml
Graduation (0 - 2 ml) : 0.1 ml
Graduation (2 - 10 ml) : 0.5 ml
Graduation (10 - 40 ml) : 1.0 ml
Graduation (40 - 100 ml) : 2.0 ml
Graduation (100 - 1000 ml) : 50.0 ml
Top Diameter : 125 mm
Bottom Diameter : 7.8 mm
Height : 480 mm
Material : Styrene acrylonitrile resin (SAN)
Brand : Kartell, Italy

Model	Descriptions	Material	Packing
KARTELL 1055	Sedimentation Imhoff Cone (1000 ml)	Styrene acrylonitrile resin (SAN)	4 units/box
KARTELL 1056	Sedimentation Imhoff Cone Stand (2 places) Size (W x L x H) : 150 x 300 x 294 mm	Poly(methyl methacrylate) (PMMA)	1 unit/box
