A.R. ALATAN SAINS (K) SDN. BHD.

PRODUCTS / HOTPLATES

HOTPLATES

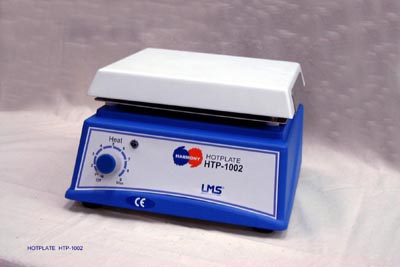

HOTPLATE Brand / Model : Harmony / HTS-1002

Cast aluminium body with chemical resistant power coating High density ceramic coating on stainless steel top plate Plate resists most chemicals and thermal cracking Rod stand integrated into body 25 cm stainless steel rod included Heat Control : 60°C to 420°C Plate Dimension (W x D) : 190 mm x 190 mm Overall Dimension (W x D x H) : 205 mm x 260 mm x 110 mm Weight : 2 kg Heater : 800 Watt Power : 220V / 50Hz Brand : Harmony, Japan

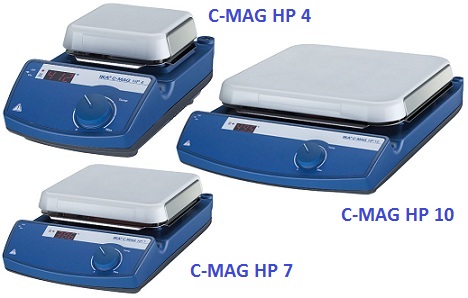

HOTPLATE Brand / Model : IKA / C-MAG HP Series

New hotplate made of ceramic glass which offers excellent chemical resistance. Fixed safety circuit of 550 °C Hot Top indicator >> hot surface warning to prevent burns! Exact temperature setting via digital display (LED) Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control Digital error code display Elevated control panel for protection against leaking liquids Temperature Range : 50°C to 500°C Temperature Dsplay : Digital Heating Plate Material : Glass ceramic Brand : IKA, Germany

Model	Plate Dimensions	Heat Output	Weight
IKA C-MAG HP 4	100 mm x 100 mm	250 Watt	3 kg
IKA C-MAG HP 7	180 mm x 180 mm	1000 Watt	5 kg
IKA C-MAG HP 10	260 mm x 260 mm	1500 Watt	6 kg







JUMBO HOTPLATE Brand / Model : Daihan Labtech / LHT-2060D

Ideal for large heating area. Ceramic coated aluminium top plate gives a perfect chemical resistance especially against strong acid. Over temperature and over current breaker for ultimate user safety. Controller : Digital PID temperature Control with 99hr 59 min timer. Material : Ceramic coated heavy duty pure aluminium top plate. Temperature Range : 5°C to 380 °C Max Heater : 3 kW Plate dimension : 300 mm (W) x 600 mm (L) Power : 220V / 50Hz Brand : Daihan Labtech, Korea
