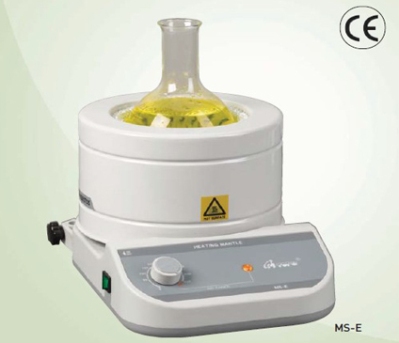

HEATING MANTLE



HEATING MANTLE
Brand : MTOPS

  • Heating mantles for round bottom flask
  • Heating temperature is controlled by analog temperature controller and controlled effectively from low temperature to high temperature.
  • Ceramic fiber with strong thermal resistance
  • Inner mantle part of the heating element consist of the soft glass fiber, protect from damage of the flask and excellent contact between the heating element and flask and heating effectiveness is excellent
  • Power On" and "Heater On" indicating lamp
  • With thermal resistance and durability bearing at the inner temperature over 450'C, strong aluminum housing and powder coating with corrosion-proof
  • Heating Element Temperature : Up to 450°C
  • Power Supply : AC 230V/50Hz
  • Brand : MTOPS, Korea

Model
Flask Capacity
Power
Dimensions (W x D x H)
Weight
MTOPS MS-E1005
50 ml
60 Watt
162 x 256 x 134 mm
1.2 kg
MTOPS MS-E101
100 ml
80 Watt
162 x 256 x 134 mm
1.2 kg
MTOPS MS-E102
250 ml
150 Watt
162 x 256 x 147 mm
1.3 kg
MTOPS MS-E103
500 ml
260 Watt
192 x 276 x 162 mm
1.6 kg
MTOPS MS-E104
1000 ml
380 Watt
214 x 298 x 172 mm
1.9 kg
MTOPS MS-E105
2000 ml
500 Watt
248 x 332 x 199 mm
2.5 kg
MTOPS MS-E106
3000 ml
600 Watt
274 x 358 x 205 mm
3.2 kg
MTOPS MS-E107
5000 ml
800 Watt
316 x 400 x 229 mm
3.6 kg
MTOPS MS-E108
10,000 ml
1300 Watt
395 mm (Dia.) x 265 mm (H)
8 kg
MTOPS MS-E109
20,000 ml
2000 Watt
460 mm (Dia.) x 290 mm (H)
11.4 kg

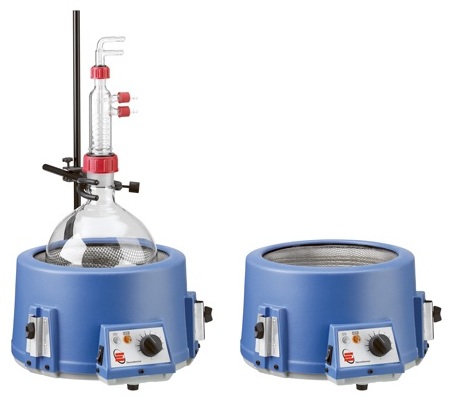

ELECTROMANTLE
Brand / Model : Electrothermal / EM Series

  • The EM Electromantle series features a durable, chemically resistant polypropylene outer housing that minimises damage from spills. They allow for maximum heat transfer with minimal risk of flask breakage.
  • "Cool-to-touch" design
  • Built-in energy regulator
  • Model EM5000/CE has 2 circuits for upper and lower level heating
  • Replaceble insulated heater cartridge
  • Indicator lamps for power and heater operation
  • A chemically resistant polypropylene outer casing
  • A grounded earth screen and double fuses for extra safety
  • Supplied with clamps for 1.3cm diameter support rods (But not including support rods)
  • Casing Material : Polypropylene (PP)
  • Control Method : Analog
  • Heating Element Temperature : Up to 450°C
  • Power Supply : AC 230V/50Hz
  • Brand : Electrothermal, UK (A Bibby Scientific Company)

Model
Flask Capacity
Dimensions
(D x W x H)
Shipping Weight
ELECTROTHERMAL EM0050
50 ml
260 x 175 x 127 mm
0.78 kg
ELECTROTHERMAL EM0100
100 ml
260 x 175 x 127 mm
0.78 kg
ELECTROTHERMAL EM0250
250 ml
260 x 175 x 127 mm
0.78 kg
ELECTROTHERMAL EM0500
500 ml
310 x 238 x 145 mm
1.25 kg
ELECTROTHERMAL EM1000
1000 ml
310 x 238 x 145 mm
1.25 kg
ELECTROTHERMAL EM2000
2000 ml
400 x 350 x 190 mm
2.58 kg
ELECTROTHERMAL EM3000
3000 ml
400 x 350 x 190 mm
2.58 kg
ELECTROTHERMAL EM5000
5000 ml
400 x 350 x 190 mm
2.58 kg

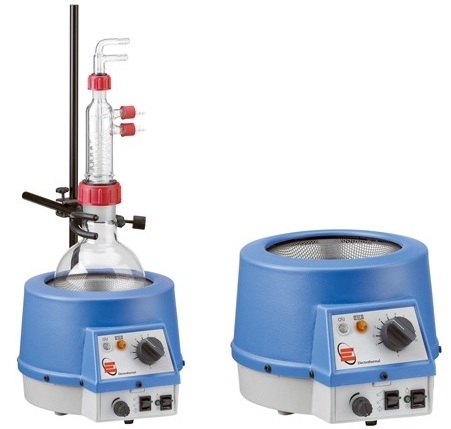

HEATING AND STIRRING ELECTROMANTLE
Brand / Model : Electrothermal / EMA Series

  • The EMA Electromantle shares all the features of the standard EM Electromantle, but has the added functionality of magnetic stirring.
  • Stirring operation is simply achieved by placing the correct size stir bar into the flask, turning the stir control to the minimum speed and ramping up slowly.
  • Stir bar "auto-recapture" function
  • Bi-directional stirring speeds up to 520rpm
  • "Cool-to-touch" design
  • Built-in energy regulator
  • Replaceble insulated heater cartridge
  • Indicator lamps for power and heater operation
  • A chemically resistant polypropylene outer casing
  • A grounded earth screen and double fuses for extra safety
  • Clamps for 1.3cm support rods (but not including the support rods)
  • Casing Material : Polypropylene (PP)
  • Control Method : Analog
  • Heating Element Temperature : Up to 450°C
  • Power Supply : AC 230V/50Hz
  • Brand : Electrothermal, UK (A Bibby Scientific Company)

Model
Flask Capacity
Dimensions
(D x W x H)
Shipping Weight
ELECTROTHERMAL EMA0050
50 ml
260 x 175 x 133 mm
1.73 kg
ELECTROTHERMAL EMA0100
100 ml
260 x 175 x 133 mm
1.73 kg
ELECTROTHERMAL EMA0250
250 ml
260 x 175 x 133 mm
1.73 kg
ELECTROTHERMAL EMA0500
500 ml
310 x 238 x 157 mm
2.75 kg
ELECTROTHERMAL EMA1000
1000 ml
310 x 238 x 157 mm
2.75 kg
ELECTROTHERMAL EMA2000
2000 ml
400 x 350 x 197 mm
5.68 kg
