A.R. ALATAN SAINS (K) SDN. BHD.

FUNNELS

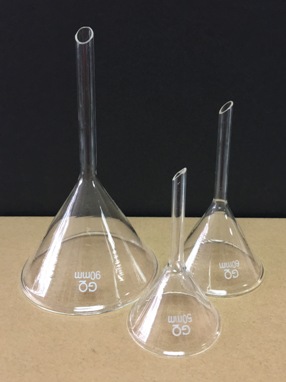

FUNNEL (GLASS) Brand : GQ
	60° angle with stem Soda glass Brand : GQ, China

Model	Funnel Diameter
GQ 1504-50	50 mm
GQ 1504-60	60 mm
GQ 1504-75	75 mm
GQ 1504-90	90 mm

FUNNEL (GLASS) Brand : Glassco
	60° angle with stem Manufactured from ASTM E 438 TYPE 1 CLASS A BORO 3.3 GLASS These funnels comply to ISO, DIN AND USP standards. Brand : Glassco, UK

Model	Funnel Diameter	Model	Funnel Diameter
GLASSCO 238.202.01	25 mm	GLASSCO 238.202.08	70 mm
GLASSCO 238.202.02	35 mm	GLASSCO 238.202.09	75 mm
GLASSCO 238.202.03	38 mm	GLASSCO 238.202.10	80 mm
GLASSCO 238.202.04	40 mm	GLASSCO 238.202.11	100 mm
GLASSCO 238.202.05	50 mm	GLASSCO 238.202.12	125 mm
GLASSCO 238.202.06	55 mm	GLASSCO 238.202.13	150 mm
GLASSCO 238.202.07	65 mm

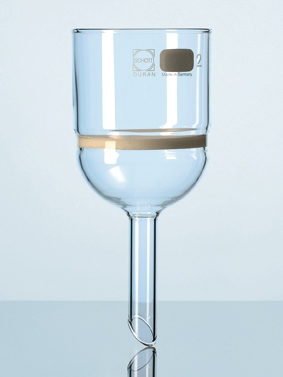

FILTER FUNNEL (SINTERED)

Brand : Duran

From DURAN® glass with its good thermal shock and chemical resistance.
Filter funnels mate to the filtering flask via a conical
rubber seal (GUKO).
Typical applications : Qualitative inorganic analysis and preparative chemistry.
Autoclavable [ Max 121°C ]
Glass type corresponds to USP, EP and JP guidelines
Porosity 0 : 160 – 250 μm pore size (Gas distribution)
Porosity 1 : 100 – 160 μm pore size ( Coarse filtration, Filtration of coarsest precipitates. Gas distribution in liquids)
Porosity 2 : 40 – 100 μm pore size (Preparative fine filtration)
Porosity 3 : 16 – 40 μm pore size (Analytical filtration)
Porosity 4 : 10 – 16 μm pore size (Analytical fine filtration)
Porosity 5 : 1.0 – 1.6 μm pore size (Ultrafine filtration)
Material : Borosilicate glass
Brand : Duran, Germany

Model		Capacity	Disk Dia.	Stem Dia.	Overall Height
DURAN 258520X*		50 ml	35 mm	10 mm	130 mm
DURAN 258521X*		75 ml	45 mm	10 mm	130 mm
DURAN 258522X*		125 ml	60 mm	10 mm	140 mm
DURAN 258523X*		500 ml	95 mm	22 mm	200 mm
DURAN 258524X*		1000 ml	120 mm	22 mm	320 mm
DURAN 258526X*		4000 ml	175 mm	30 mm	400 mm
	* The required porosity should be inserted in place of X in the model [ Porosity 0, 1, 2, 3, 4 or 5 ]

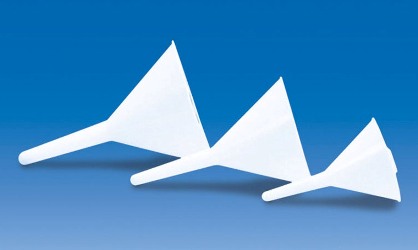

FUNNEL (PLASTIC)

Brand : Vitlab

Transparent.
Rapid flow due to a steep 60° angle.
Practical handle with loop for hanging.
Food-safe products. VITLAB offers you a variety of food-safe products for your individual application in the food industry. It is difficult to imagine work in the food industry without plastic products. There are many good reasons for this : superior break resistance means that the danger of injury is reduced and that the products can be used for a long period of time. Our food-safe products are made from high-quality polypropylene (PP).
Material : Polypropylene (PP)
Brand : VITLAB, Germany

Model	Capacity	Funnel Dia.	Funnel Length	Stem Dia.	Stem Length
VITLAB 41094	6 ml	30 mm	47 mm	4 mm	25 mm
VITLAB 41194	14 ml	40 mm	65 mm	4 mm	35 mm
VITLAB 41294	32 ml	50 mm	85 mm	7 mm	43 mm
VITLAB 41394	88 ml	75 mm	110 mm	6 mm	55 mm
VITLAB 41494	222 ml	100 mm	155 mm	8 mm	77 mm
VITLAB 41594	342 ml	120 mm	180 mm	11 mm	90 mm
VITLAB 41694	817 ml	150 mm	220 mm	15 mm	95 mm

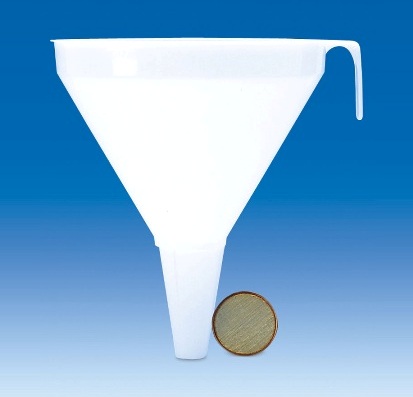

LARGE FUNNEL (PLASTIC)

Brand : Vitlab

Transparent.
Rapid flow due to a steep 60° angle.
Practical handle for hanging.
Suitable for filling large amounts of liquids.
Food-safe products. VITLAB offers you a variety of food-safe products for your individual application in the food industry. It is difficult to imagine work in the food industry without plastic products. There are many good reasons for this : superior break resistance means that the danger of injury is reduced and that the products can be used for a long period of time. Our food-safe products are made from high-quality polypropylene (PP).
Material : Polypropylene (PP)
Brand : VITLAB, Germany

Model	Capacity	Funnel Dia.	Funnel Length	Stem Dia.
VITLAB 41794	1300 ml	200 mm	200 mm	22 mm
VITLAB 41894	3200 ml	250 mm	260 mm	30 mm

FUNNEL (STAINLESS STEEL) Brand : As One
	Corrosion-resistant. Material : 18/8 Austenitic stainless steel Brand : As One, Japan

Model	Funnel Diameter
AS ONE 3609-80	80 mm
AS ONE 3609-100	100 mm
AS ONE 3609-125	125 mm
AS ONE 3609-150	150 mm
AS ONE 3609-200	200 mm
AS ONE 3609-300	300 mm

POWDER FUNNEL (GLASS) Brand : Duran
	Powder funnel with short, wide stem From DURAN® glass with its good thermal shock and chemical resistance. Typical applications : Decanting of powdered substances and granulated material. Autoclavable [ Max 121°C ] Glass type corresponds to USP, EP and JP guidelines Material : Borosilicate Glass Brand : Duran, Germany

Model	Top Inside Dia.	Overall Height	Stem Dia.	Stem Length
DURAN 2135433	55 mm	60 mm	20 mm	30 mm
DURAN 2135438	70 mm	72 mm	22 mm	30 mm
DURAN 2135441	80 mm	79 mm	24 mm	30 mm
DURAN 2135446	100 mm	94 mm	26 mm	30 mm
DURAN 2135451	120 mm	105 mm	34 mm	30 mm
DURAN 2135455	160 mm	140 mm	35 mm	30 mm
DURAN 2135461	200 mm	170 mm	40 mm	30 mm

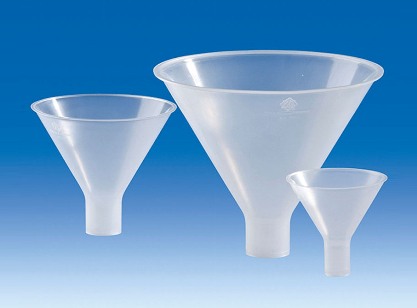

POWDER FUNNEL (PLASTIC)

Brand : Vitlab

Transparent.
With short, wide stem.
For transfer of powdered and granular substances.
Rapid flow due to a steep 60° angle.
Can be autoclaved at 121°C (2 bar) according to DIN EN 285.
Food-safe products. VITLAB offers you a variety of food-safe products for your individual application in the food industry. It is difficult to imagine work in the food industry without plastic products. There are many good reasons for this: superior break resistance means that the danger of injury is reduced and that the products can be used for a long period of time. Our food-safe products are made from high-quality polypropylene (PP).
Material : Polypropylene (PP)
Brand : Vitlab, Germany

Model	Funnel Dia.	Funnel Length	Stem Dia.	Stem Length
VITLAB 70794	65 mm	68 mm	15 mm	25 mm
VITLAB 70894	80 mm	75 mm	21 mm	25 mm
VITLAB 70994	100 mm	94 mm	22 mm	20 mm

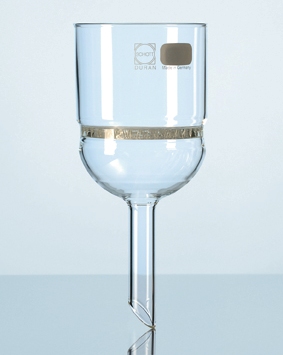

BUCHNER FUNNEL (GLASS) Brand : Duran
	DURAN® Buechner funnel From DURAN® glass with its good thermal shock and chemical resistance. The Buechner funnel features a glass support for membrane and paper filters Typical applications : Qualitative inorganic analysis and preparative chemistry Autoclavable [ Max 121°C ] Glass type corresponds to USP, EP and JP guidelines Material : Borosilicate glass Brand : Duran, Germany

Model	Capacity	Disk Dia.	Matching Filter Paper	Stem Dia.	Overall Height
DURAN 2134122	70 ml	48 mm	45 mm	10 mm	130 mm
DURAN 2134128	125 ml	60 mm	55 mm	10 mm	140 mm
DURAN 2134134	220 ml	73 mm	70 mm	18 mm	180 mm
DURAN 2134144	500 ml	95 mm	90 mm	22 mm	240 mm
DURAN 2134154	1000 ml	120 mm	110 mm	22 mm	280 mm

BUCHNER FUNNEL (PORCELAIN) Brand : GQ
	Porcelain buchner funnels with fixed perforated plate A Buchner funnel is a piece of laboratory equipment used in suction filtration Brand : GQ, China

Model	Funnel Diameter
GQ C-146	90 mm
GQ C-147	110 mm
GQ C-148	125 mm

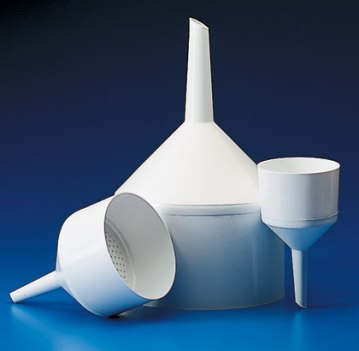

BUCHNER FUNNEL (PLASTIC) Brand : Kartell
	Robust, lightweight. Unbreakable and resistant to corrosion and heat (max 120°C). Two piece construction. Top and bottom can be separated for easy and total cleaning. Autoclavable. Excellent chemical resistance. Brand : Kartell, Italy

Model	Funnel Diameter	Hole Diameter	Capacity
KARTELL 439	70 mm	2 mm	180 ml
KARTELL 441	90 mm	2.5 mm	390 ml
KARTELL 442	110 mm	2.5 mm	810 ml

SEPARATING FUNNEL Brand : Favorit
	Pear shape Ungraduated PTFE stopcock Polyethylene (PE) stopper Brand : Favorit, Malaysia

Model	Capacity	Socket Size
FAVORIT JD52/50/PT	50 ml	19/26
FAVORIT JD52/100/PT	100 ml	19/26
FAVORIT JD53/250/PT	250 ml	24/29
FAVORIT JD53/500/PT	500 ml	24/29
FAVORIT JD24/1L/PT	1000 ml	29/32
FAVORIT JD24/2L/PT	2000 ml	29/32

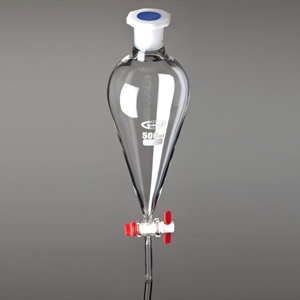

SEPARATING FUNNEL Brand : Glassco
	Separating funnels are produced from ASTM E-438 TYPE-1 Class A BORO 3.3 heat resistant glass All these flasks are manufactures as per DIN/ISO 4800 standard The printing is done in white colour Squibb shape Ungraduated PTFE stopcock Polypropylene (PP) stopper Brand : Glassco, UK

Model	Capacity	Socket Size
GLASSCO 149.202.02	50 ml	19/26
GLASSCO 149.202.03	100 ml	19/26
GLASSCO 149.202.04	250 ml	29/32
GLASSCO 149.202.05	500 ml	29/32
GLASSCO 149.202.06	1000 ml	29/32
GLASSCO 149.202.07	2000 ml	29/32

FILTER FUNNEL HOLDER Brand : Karl Kurt
	This wooden funnel holder can keep two or four funnels securely held in place over jars, beakers or other receptacles Closed holes Screwed on rod, and can vertically adjust the desired height by a screw-clamp bushing. Material : Wood Brand : Karl Kurt, Germany

Model	Description	Weight
KARL KURT 10110	2 holes	485.4 g
KARL KURT 10120	4 holes	703.1 g

RETORT RING WITH BOSS HEAD Country of Origin : China
	Closed retort support rings with bosshead to attach to support stand rod. Designed to support a good portion of weight Material : Ni/Cr plated steel Country of Origin : China

Model	Description
A0943	Retort ring with boss head [ 80 mm External Dia. x 66 mm Internal Dia. ]
A3864	Retort ring with boss head [ 100 mm External Dia. x 83 mm Internal Dia. ]

RUBBER SPACERS FOR FILTERING Brand : D&N
	Natural rubber Grey colour Brand : D&N, Germany

Model	Description	Size (Top Dia. x Bottom Dia.)	Height
D&N 2010011	For 50 ml flask (#1)	21 x 12 mm	18 mm
D&N 2010021	For 125 ml flask (#2)	27 x 17 mm	20 mm
D&N 2010032	For 250 ml flask (#3)	33 x 21 mm	24 mm
D&N 2010041	For 500 ml flask (#4)	41 x 27.5 mm	27 mm
D&N 2010051	For 1000 ml flask (#5)	53 x 33 mm	34 mm
D&N 2010061	For 2000 ml flask (#6)	68 x 48 mm	35 mm
D&N 2010071	For 4000 ml flask (#7)	78 x 58 mm	35 mm
D&N 2010081	For 6000 ml flask (#8)	89 x 66 mm	40 mm
