A.R. ALATAN SAINS (K) SDN. BHD.

FLASKS

CONICAL FLASK (GLASS) Brand : Pyrex-Iwaki
	Narrow mouth Clear glass Borosilicate glass Heavy duty rim Brand : Pyrex-Iwaki

Model	Capacity	Graduation Interval	Subdivision	O.D. x Height x Neck O.D.
PYREX 4980FK50	50 mL	20 to 50 mL	10 mL	52 x 82 x 22 mm
PYREX 4980FK100	100 mL	40 to 100 mL	20 mL	65 x 110 x 28 mm
PYREX 4980-250N	250 mL	100 to 250 mL	25 mL	85 x 140 x 34 mm
PYREX 4980FK500	500 mL	150 to 500 mL	50 mL	108 x 173 x 37 mm
PYREX 4980-1000N	1000 mL	-	-	131 x 220 x 42 mm
PYREX 4980FK2000	2000 mL	750 to 2000 mL	250 mL	172 x 270 x 50 mm

CONICAL FLASK (GLASS)

Brand / Model : Kimble / 26500

NARROW MOUTH ERLENMEYER FLASKS.
KIMAX® flasks for economy and versatility. These flasks are the choice for general laboratory usage.
Tops are reinforced and tooled with a rounded finish, containing more glass to give them maximum mechanical strength.
Body is thick-walled, with a long tapered outside contour to minimize chipping when struck or rubbed together.
All flasks have durable white ceramic enamel scales to indicate approximate volumes at various levels, useful in measuring and mixing solutions where a high degree of accuracy is not necessary.
Designed from ASTM Specification E1404, Type I, Class I requirements.
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
Brand : Kimble, USA

Model	Capacity	Graduation Range	Graduation Interval	Widest O.D. x Height
KIMBLE 26500-25	25 mL	10 to 25 mL	5 mL	39 x 65 mm
KIMBLE 26500-50	50 mL	20 to 50 mL	10 mL	50 x 78 mm
KIMBLE 26500-125	125 mL	50 to 125 mL	25 mL	66 x 108 mm
KIMBLE 26500-250	250 mL	50 to 225 mL	25 mL	82 x 130 mm
KIMBLE 26500-500	500 mL	100 to 500 mL	50 mL	102 x 174 mm
KIMBLE 26500-1000	1000 mL	250 to 1000 mL	50 mL	128 x 213 mm
KIMBLE 26500-2000	2000 mL	600 to 2000 mL	100 mL	161 x 275 mm
KIMBLE 26500-4000	4000 mL	1000 to 4000 mL	250 mL	208 x 355 mm
KIMBLE 26500-6000	6000 mL	1500 to 6000 mL	500 mL	241 x 395 mm

CONICAL FLASK (GLASS) Brand / Model : Kimble / 26650
	WIDE-MOUTH ERLENMEYER FLASKS. Heavy-duty tooled-top finish with capacity scale. KIMAX® flask with a wide mouth. Ref : ASTM Method D473. Designed from ASTM Specification E1404, Type I, Class II requirements. Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements. Brand : Kimble, USA

Model	Capacity	Graduation Range	Graduation Interval	Widest O.D. x Height
KIMBLE 26650-250	250 mL	50 to 225 mL	25 mL	77 x 130 mm
KIMBLE 26650-500	500 mL	100 to 500 mL	50 mL	97 x 172 mm

CONICAL FLASK WITH CAP (GLASS)

Brand / Model : Kimble / 26505

SCREW CAP ERLENMEYER FLASKS
Used to mix and store culture media, as well as with other culturing techniques.
KIMAX® flask with a screw-thread finish.
Included are WHITE caps with cemented-in white rubber liners
Designed from ASTM Specification E1404, Type III requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Graduation Range	Subdivision	Widest O.D. x Height
KIMBLE 26505-125	125 mL	50 to 125 mL	25 mL	66 x 115 mm
KIMBLE 26505-250	250 mL	50 to 225 mL	25 mL	82 x 128 mm
KIMBLE 26505-500	500 mL	100 to 500 mL	50 mL	102 x 175 mm
KIMBLE 26505-1000	1000 mL	250 to 1000 mL	50 mL	128 x 215 mm

CONICAL FLASK (GLASS)

Brand / Model : Kimble / 26510

JOINTED NARROW MOUTH ERLENMEYER FLASKS WITH CAPACITY SCALE
With durable white ceramic enamel capacity scale
KIMAX® flask with a full length Standard Taper ground glass neck finish
Tops are reinforced and tooled with a rounded finish, containing more glass to give them maximum mechanical strength
Body is thick-walled, with a long tapered outside contour to minimize chipping when struck or rubbed together
Designed from ASTM Specification E1404, Type II, Class I requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Standard Taper Joint : 24/40
Brand : Kimble, USA

Model	Capacity	Graduated Interval	Subdivision	Widest Dia. x Height
KIMBLE 26510-125	125 mL	50 to 125 mL	25 mL	66 x 133 mm
KIMBLE 26510-250	250 mL	50 to 225 mL	25 mL	82 x 155 mm
KIMBLE 26510-500	500 mL	100 to 500 mL	50 mL	102 x 191 mm
KIMBLE 26510-1000	1000 mL	250 to 1000 mL	50 mL	128 x 230 mm

CONICAL FLASK WITH STOPPER (GLASS)

Brand / Model : Kimble / 26600

PENNYHEAD STOPPER FOR ERLENMEYER FLASKS
KIMAX® flask with a Standard Taper ground glass stopper neck finish
With capacity scale
Stopper is included
Heights shown in table are without the stopper
Replacement stopper is 850100 (glass), 41901R (PTFE) or 28160R (poly)
Designed from ASTM Specification E1404, Type II, Class II requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Graduated Interval	Subdivision	Widest Dia. x Height
KIMBLE 26600-125	125 mL	50 to 125 mL	25 mL	66 x 118 mm
KIMBLE 26600-250	250 mL	50 to 225 mL	25 mL	82 x 132 mm
KIMBLE 26600-500	500 mL	100 to 500 mL	50 mL	102 x 159 mm

CONICAL FLASK WITH STOPPER(GLASS)

Brand / Model : Kimble / 26610

RAY-SORB® ERLENMEYER FLASKS
RAY-SORB® processed to protect materials sensitive to the light of shorter wavelengths
Less than 1% transmission below 400 nm and approximately 5% transmission from 400-600 nm
Without a capacity scale
Standard Taper PTFE stopper is supplied with the flask
Replacement stopper is 41901R
Designed from ASTM Specification E1404, Type II, Class II requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements and then RAY-SORB® processed
Brand : Kimble, USA

Model	Capacity	Widest Dia. x Height	Stopper Color
KIMBLE 26610-50	50 mL	50 x 76 mm	Green
KIMBLE 26610-125	125 mL	66 x 118 mm	Yellow
KIMBLE 26610-250	250 mL	82 x 132 mm	Red
KIMBLE 26610-500	500 mL	102 x 159 mm	Grey

BAFFLED SHAKE FLASK

Brand / Model : Kimble / 25630

Designed for use with rotary and reciprocating shakers where baffle indents provide greater turbulence to improve oxygen transfer rates or aeration.
Flask has a neck with a plain fire-polished finish and suitable for a metal cap, plastic cap, foam plug or cotton plug.
Autoclavable.
All flasks have durable white ceramic enamel marking spots.
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
Brand : Kimble, USA

Model	Capacity	Base O.D. x Height	Neck O.D
KIMBLE 25630-250	250 mL	82 x 142 mm	38 mm
KIMBLE 25630-500	500 mL	102 x 183 mm	38 mm
KIMBLE 25630-1000	1000 mL	128 x 230 mm	38 mm
KIMBLE 25630-2000	2000 mL	161 x 288 mm	38 mm

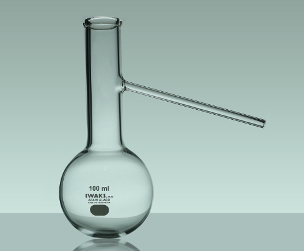

DISTILLATION FLASK (GLASS) Brand : Pyrex-Iwaki
	Clear glass Beaded rim top Long neck Round bottom 120 mm side arm length at an angle of 75° 8 mm outside diameter side arm Brand : Pyrex-iwaki

Model	Capacity	O.D. x Height	Neck O.D.
PYREX 4620FK250	250 mL	-	-
PYREX 4620FK500	500 mL	109 x 250 mm	34 mm
PYREX 4620FK1000	1000 mL	137 x 300 mm	40 mm

DISTILLATION FLASK (GLASS)

Brand / Model : Kimble / 26015-125

ENGLER DISTILLATION FLASKS
KIMAX® distilling flask. Distillation.
Sidearm tube is sealed at an angle of 75° from the neck and is 137 ± 3 mm from the bottom of the flask
Designed from ASTM Specification E133 and intended for use in ASTM D86, D233, D801, and D802
Ref: ASTM Method D86
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Capacity : 125 mL
Height : 214 mm
Arm O.D. : 7 mm
Brand : Kimble, USA

FILTERING FLASK (GLASS)

Brand / Model : Kimble / 27060

GRADUATED FILTERING FLASK
KIMAX® flask with glass side tubulation
Capacity scale
Flasks are designed for vacuum to 29” of mercury
Made with a heavier wall than a standard Erlenmeyer flask
All sizes have glass side hose connection designed to accept 5/16 inch ID flexible tubing
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Graduated Interval	Subdivision	Widest Dia. x Height
KIMBLE 27060-50	50 mL	20 to 50 mL	10 mL	48 x 81 mm
KIMBLE 27060-125	125 mL	50 to 125 mL	25 mL	69 x 111 mm
KIMBLE 27060-250	250 mL	50 to 250 mL	25 mL	83 x 163 mm
KIMBLE 27060-500	500 mL	150 to 500 mL	50 mL	104 x 190 mm
KIMBLE 27060-1000	1000 mL	300 to 1000 mL	50 mL	135 x 238 mm
KIMBLE 27060-2000	2000 mL	600 to 2000 mL	100 mL	168 x 300 mm
KIMBLE 27060-4000	4000 mL	1000 to 4000 mL	250 mL	208 x 380 mm

FILTERING FLASK (GLASS)

Brand / Model : Kimble / 27065

GRADUATED FILTERING FLASKS
Detachable autoclavable plastic sidearm designed to accept 5/16 inch ID flexible tubing (U.S. Patent 3,268,300)
Sidearm has two ears to provide a finger grip for easy insertion into a neoprene bushing by turning the plastic piece
Opening in the sidearm is larger at the flask end to hold a cotton plug securely
Made with a heavier wall than a standard Erlenmeyer flask
All flasks have durable white ceramic enamel scales to indicate approximate volumes at various levels
Designed from ASTM Specification E1406, Type III, Class II requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Graduated Interval	Subdivision	Widest Dia. x Height
KIMBLE 27065-250	250 mL	50 to 250 mL	25 mL	83 x 163 mm
KIMBLE 27065-500	500 mL	150 to 500 mL	50 mL	104 x 190 mm
KIMBLE 27065-1000	1000 mL	300 to 1000 mL	50 mL	135 x 238 mm

ROUND BOTTOM FLASK (GLASS) Brand : Pyrex-Iwaki
	Clear glass Round Bottom Narrow Neck Long neck Tooled mouth Brand : Pyrex-Iwaki

Model	Capacity	O.D. x Height	Neck O.D.
PYREX 4280FK50	50 mL	53 x 105 mm	20 mm
PYREX 4280FK100	100 mL	65 x 126 mm	22 mm
PYREX 4280-250N	250 mL	81 x 145 mm	34 mm
PYREX 4280FK500	500 mL	109 x 210 mm	28 mm
PYREX 4280FK1000	1000 mL	137 x 260 mm	35 mm

ROUND BOTTOM FLASK (GLASS) Brand / Model : Kimble / 25200
	BOILING FLASK WITH TOOLED TOP KIMAX® round-bottomed boiling flask Reinforced tooled top Designed from ASTM Specification E1403, Type II, Class I, requirements Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements Brand : Kimble, USA

Model	Capacity	O.D. x Height	Rubber Stopper Size
KIMBLE 25200-250	250 mL	83 x 149 mm	5
KIMBLE 25200-500	500 mL	102 x 205 mm	6

ROUND BOTTOM FLASK (GLASS) Brand / Model : Kimble / 25285
	SHORT NECK FLASKS KIMAX® round bottom boiling flask with a short neck and a medium length Standard Taper joint Ref: ASTM Method D322 Designed from ASTM Specification E1403, Type II, Class III requirements Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements Brand : Kimble, USA

Model	Capacity	Body O.D. x Height	Standard Taper Joint
KIMBLE 25285-100	100 mL	63 x 115 mm	24/40
KIMBLE 25285-250	250 mL	83 x 140 mm	24/40
KIMBLE 25285-500	500 mL	102 x 160 mm	24/40
KIMBLE 25285-1000	1000 mL	130 x 190 mm	24/40

FLAT BOTTOM FLASK (GLASS) Brand : Pyrex-Iwaki
	Clear glass Flat Bottom Narrow Neck Long neck Tooled mouth Brand : Pyrex-Iwaki

Model	Capacity	O.D. x Height	Neck O.D.
PYREX 4060FK50	50 mL	53 x 105 mm	20 mm
PYREX 4060FK100	100 mL	65 x 126 mm	20 mm
PYREX 4060FK250	250 mL	80 x 140 mm	34 mm
PYREX 4060FK300	300 mL	93 x 180 mm	28 mm
PYREX 4060FK500	500 mL	108 x 210 mm	28 mm
PYREX 4060FK1000	1000 mL	135 x 260 mm	35 mm

FLAT BOTTOM FLASK (GLASS)

Brand / Model : Kimble / 25000

FLAT BOTTOM FLORENCE FLASKS
KIMAX® flasks have a low coefficient of expansion to resist thermal shock
They are constructed with sturdy walls to minimize mechanical breakage, reinforced tooled tops for strength, and a secure stopper fit
Designed from ASTM Specification E1403, Type I, Class I requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	O.D. x Height
KIMBLE 25000-500	500 mL	102 x 182 mm
KIMBLE 25000-1000	1000 mL	130 x 215 mm

FLAT BOTTOM FLASK (GLASS)

Brand / Model : Kimble / 25057-250

RAY-SORB® FLAT BOTTOM BOILING FLASKS
KIMAX® boiling flask is RAY-SORB® processed to provide protection to solutions sensitive to light of the shorter wavelengths
Less than 1% transmission below 400 nm and approximately 5% transmission from 400-600 nm
Short neck, Flat bottom
Full length 24/40 joint
Designed from ASTM Specification E1403, Type I, Class IV requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements and then RAY-SORB® processed
Capacity : 250 mL
O.D. x Height : 83 x 133 mm
Brand : Kimble, USA

IODINE FLASK (GLASS)

Brand / Model : Kimble / 27200

IODINE FLASKS
KIMAX® 250 mL is flask used in the analysis of dry shellac and shellac varnishes with Wijs iodine monochloride solution and may be used to determine the total iodine value of oils, fatty acids and bodied oils with Rosenmund-Kuhnhenn reagent (ASTM D1541, withdrawn 2006).
The 500 mL is used in the testing of drying oils for use in paints and varnishes, either with Wijs solution or with Hanus iodine-bromine solution (ASTM D555, withdrawn 2007).
Supplied with size 22, yellow-handled PTFE stopper
Heights shown below are without stopper
Designed from ASTM Specification E1404, Type II, Class III requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Widest Dia. x Height
KIMBLE 27200-250	250 mL	82 x 160 mm
KIMBLE 27200-500	500 mL	102 x 195 mm

KJELDAHL FLASK (GLASS)

Brand / Model : Kimble / 27400

KJELDAHL FLASK
KIMAX® Kjeldahl flasks have a reinforced bead at the top and a long neck to trap splashes
The 10 and 30 mL are designed from ASTM Specification E147, and larger sizes are designed from ASTM Specification E1377, Type I requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Brand : Kimble, USA

Model	Capacity	Height
KIMBLE 27400-30	30 mL	178 mm
KIMBLE 27400-100	100 mL	210 mm

VOLUMETRIC FLASK (PLASTIC)

Brand : Kartell

VOLUMETRIC FLASKS WITH CAP
These flasks create no meniscus so final readings are easy.
Calibrated gravimetrically at 20°C.
Translucency of PP enhanced when in contact with liquid.
Thick walls eliminate distortion.
Thin neck make final reading precise.
Autoclavable.
Chemically non-absorbant. No wetting. Stoppers included.
SUITABLE FOR FOODSTUFF.
Material : Polypropylene (PP)
Brand : Kartell, Italy

Model	Capacity	Size (O.D. x H)	NS / DIN
KARTELL 1484	25 mL	36 x 121 mm	12 / 21
KARTELL 1485	50 mL	46 x 143 mm	14 / 23
KARTELL 1486	100 mL	58 x 174 mm	14 / 23
KARTELL 1487	250 mL	82 x 225 mm	19 / 26
KARTELL 1488	500 mL	100 x 265 mm	19 / 26
KARTELL 1489	1000 mL	120 x 325 mm	19 / 26

VOLUMETRIC FLASK (PLASTIC) Brand : Vitlab
	Volumetric flasks, PP, class B High transparency, with screw cap made of PP and individually adjusted ring-mark. Tolerances class B according to DIN EN ISO 1042. Exposure to temperatures above 60 °C may effect accuracy. Cleaning up to max. 60 °C is recommended to preserve marks and inscriptions. Brand : Vitlab, Germany

Model	Capacity	Tolerance	O.D. Neck x Height
VITLAB 671891	25 mL	± 0.08 ml	18 x 115 mm
VITLAB 672891	50 mL	± 0.12 ml	18 x 150 mm
VITLAB 673891	100 mL	± 0.20 ml	18 x 180 mm
VITLAB 674891	250 mL	± 0.30 ml	25 x 235 mm
VITLAB 675891	500 mL	± 0.50 ml	25 x 270 mm
VITLAB 676891	1000 mL	± 0.80 ml	32 x 310 mm

VOLUMETRIC FLASK (PLASTIC) Brand : Vitlab
	Volumetric flasks, PP, class B High transparency, with NS stopper made of PP and individually adjusted ring-mark. Tolerances class B according to DIN EN ISO 1042. Exposure to temperatures above 60 °C may effect accuracy. Cleaning up to max. 60 °C is recommended to preserve marks and inscriptions. Brand : Vitlab, Germany

Model	Capacity	Tolerance	Neck NS	Height
VITLAB 671941	25 mL	± 0.08 ml	10/19	115 mm
VITLAB 672941	50 mL	± 0.12 ml	10/19	150 mm
VITLAB 673941	100 mL	± 0.20 ml	14/23	180 mm
VITLAB 674941	250 mL	± 0.30 ml	19/26	235 mm
VITLAB 675941	500 mL	± 0.50 ml	19/26	270 mm
VITLAB 676941	1000 mL	± 0.80 ml	24/29	310 mm

VOLUMETRIC FLASK (Glass)

Brand : Glassco

Volumetric Flasks Class A are nade from ASTM E 438 TYPE 1 Class A heat resistant BORO 3.3 glass that meet EN ISO 1042 standard,
The calibration is done on automatic computer controlled machine and are calibrated to contain (TC, In) according to the ISO tolerance standards.
All A Class flasks are printed in blue colour. The meniscus mark is diamond grinded for longer persistence and better accuracy.
Come with conformity batch certified
Polypropylene (PP) stopper
Brand : Glassco, UK

Model	Capacity	Tolerance	Neck NS
GLASSCO 130.202.01	5 mL	± 0.040 mL	10/19
GLASSCO 130.202.02	10 mL	± 0.040 mL	10/19
GLASSCO 130.202.03	25 mL	± 0.040 mL	10/19
GLASSCO 130.202.04B	50 mL	± 0.100 mL	14/23
GLASSCO 130.202.05	100 mL	± 0.100 mL	14/23
GLASSCO 130.202.06	200 mL	± 0.150 mL	14/23
GLASSCO 130.202.07	250 mL	± 0.150 mL	14/23
GLASSCO 130.202.08	500 mL	± 0.250 mL	19/26
GLASSCO 130.202.09	1000 mL	± 0.400 mL	24/29
GLASSCO 130.202.10	2000 mL	± 0.600 mL	29/32
GLASSCO 130.202.11	5000 mL	± 1.200 mL	34/35

VOLUMETRIC FLASK (Glass) Brand : Pyrex-Iwaki
	Clear glass Class A Plastic stopper Amber marking Brand : Pyrex-Iwaki

Model	Capacity	Tolerance	Height
PYREX 5645-5	5 mL	± 0.025 mL	70 mm
PYREX 5645-10	10 mL	± 0.025 mL	90 mm
PYREX 5645-25	25 mL	± 0.04 mL	120 mm
PYREX 5645-50	50 mL	± 0.06 mL	150 mm
PYREX 5645-100	100 mL	± 0.10 mL	180 mm
PYREX 5645-200	200 mL	± 0.15 mL	224 mm
PYREX 5645-250	250 mL	± 0.15 mL	231 mm
PYREX 5645-500	500 mL	± 0.25 mL	280 mm
PYREX 5645-1000	1000 mL	± 0.40 mL	325 mm
PYREX 5645-2000	2000 mL	± 0.60 mL	400 mm

VOLUMETRIC FLASK (GLASS)

Brand / Model : Kimble / 28016

RAY-SORB® CLASS A VOLUMETRIC FLASKS WITH COLOR-CODED PTFE STOPPER
These flasks are RAY-SORB® processed to protect your light-sensitive contents from short-length lightwaves.
Calibrated to contain
With a marking spot
Supplied with a PTFE Standard Taper stopper having a color-coded handle
Designed from ASTM Specification E288, Class A unserialized requirements
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements and then RAY-SORB® processed
Brand : Kimble, USA

Model	Capacity	Tolerance	Handle Colour	Height with Stopper
KIMBLE 28016-10	10 mL	± 0.02 mL	Black	103 mm
KIMBLE 28016-25	25 mL	± 0.03 mL	Black	118 mm
KIMBLE 28016-50	50 mL	± 0.05 mL	Black	148 mm
KIMBLE 28016-100	100 mL	± 0.08 mL	Orange	180 mm
KIMBLE 28016-250	250 mL	± 0.12 mL	Blue	250 mm
KIMBLE 28016-500	500 mL	± 0.20 mL	Green	287 mm
KIMBLE 28016-1000	1000 mL	± 0.30 mL	Yellow	338 mm

DEWAR CARRYING FLASK

Brand : KGW-Isotherm

Silvered borosilicate glass, blue coated metal protective covering (B)
For storage and transport of liquid nitrogen, dry ice and temperature-sensitive goods.
When storing liquid nitrogen (LN2), a hole (Ø ca. 2 mm) in centre of the lid is necessary.
Flexible applications in laboratory
Cooling of small samples
Robust design
Made of Borosilicatglass 3.3
Included insulated lid held by two spring clips
With aluminium handle
Brand : KGW-Isotherm, Germany

Model	Capacity	Type	Internal Dia. x Internal Height
KGW-ISOTHERM 1211	1 Liter	26B	100 x 150 mm
KGW-ISOTHERM 1212	2 Liter	27B	138 x 170 mm
KGW-ISOTHERM 1213	3 Liter	28B	138 x 230 mm

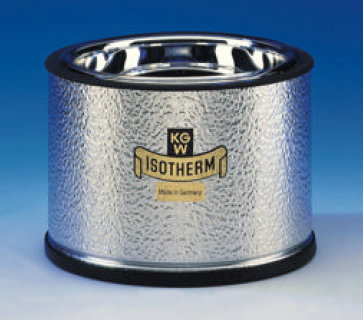

DEWAR FLASK (DISH-SHAPED)

Brand : KGW-Isotherm

Dish-shaped Dewar Flasks
Tempering of round bottom flasks
Cooling of small samples
Suitable as a hot or cold bath
Suitable on magnetic stirrer
Easy handling
Supply without lid (Purchase lid separately)
Made of Borosilicatglass 3.3
Fully silvered
Brand : KGW-Isotherm, Germany

Model	Capacity	Type	Internal Dia. x Internal Height
KGW-ISOTHERM 1192	120 mL	SCH 6 CAL	67 x 40 mm
KGW-ISOTHERM 1193	260 mL	SCH 15 CAL	100 x 65 mm
KGW-ISOTHERM 1194	400 mL	SCH 18 CAL	110 x 70 mm
KGW-ISOTHERM 1196	1600 mL	SCH 30 CAL	170 x 110 mm

ROUND BOTTOM FLASK HOLDER Brand / Product Code : Kartell / 271
	Round bottomed flasks from the smallest up to 10 litres can be supported safely on the internal “steps” of this support. Hot flasks up to 100°C (120°C for short periods) can be supported without damaging the holder. Autoclavable. No. of int. steps : 10 Size (Dia. x H) : 160 x 49 mm Material : Polypropylene (PP) Brand : Kartell, Italy

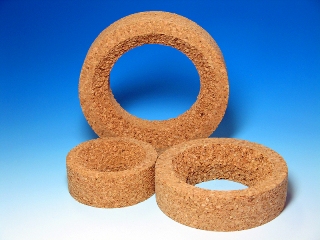

CORK RING Brand : Assistent
	Glassware support rings are excellent for holding round bottom flasks in place All rings are 30 mm high Brand : Assistent, Germany

Model	Description
ASSISTENT 1914/1	For round bottom flask of 10 to 100 ml
ASSISTENT 1914/2	For round bottom flask of 250 to 500 ml
ASSISTENT 1914/3	For round bottom flask of 500 to 1000 ml

FLASK TONG Brand / Product Code : Karl Kurt / 3560
	FISHER safety tong for flasks from 100 ml to 2000 ml Length : 250 mm Weight : 124.3 g Material : Stainless steel Brand : Karl Kurt, Germany
